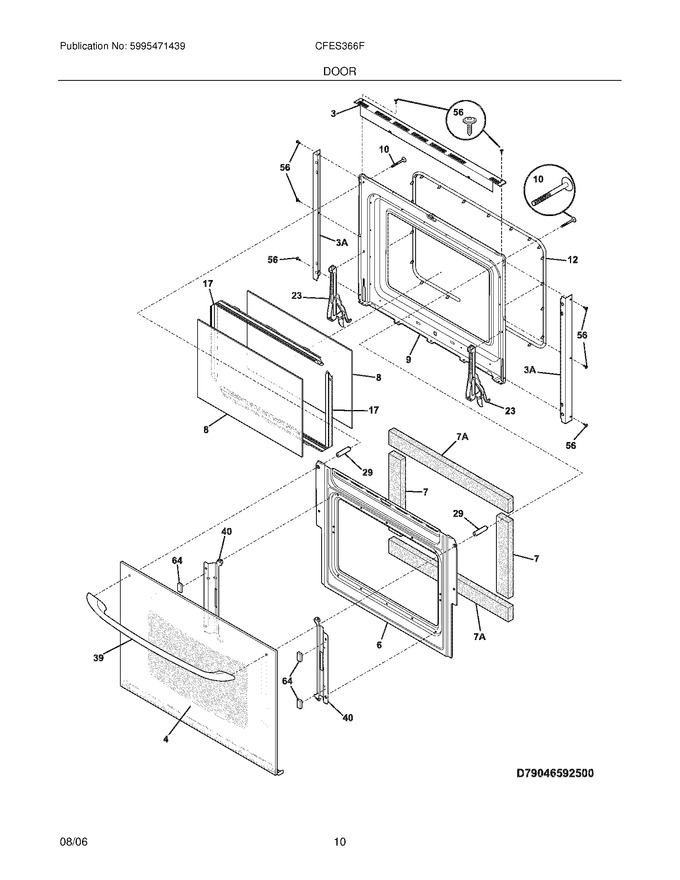

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260201		Trim,oven Door ,black ,upper				$ 57.91
4	318261301		Glass Assy.,oven Door ,white ,outer ,w/ Trim			Immediately	$ 582.04
6	318260520		Baffle,door		Appelez-nous	-
7	318372017		Insulation,oven Door   (Replaces: 318285057)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259601		Liner,oven Door ,upper				$ 99.12
10	5304453223		Screw,handle Mtg. ,10-14 X 1.82 ,(2)   (Replaces: 5304448823)			Immediately	$ 13.19
12	318053120		Seal,door ,lower Oven			Immediately	$ 159.62
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	318024722		Hinge,door ,(2)		Appelez-nous	-
29	318014402		Spacer,door		Appelez-nous	-
39	316270201		Handle,door ,white			Immediately	$ 128.29
40	318382302		Bracket,glass Holder ,(2)   (Replaces: 318242700)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372016		Insulation,oven Door   (Replaces: 318285062)				$ 17.72
NI	316221002		Label,anti-tip		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
