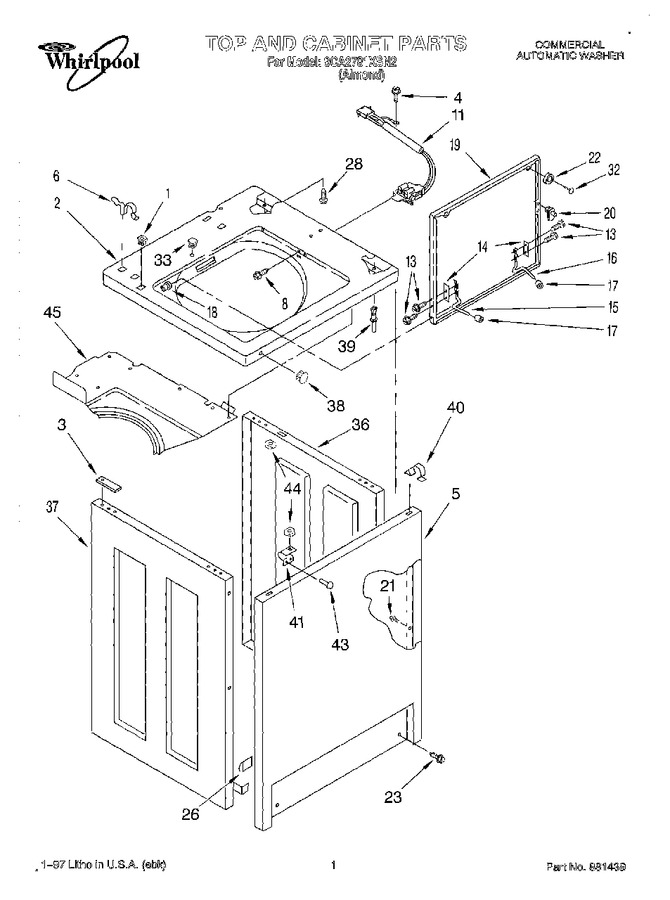

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 2 | 3357347 | Top (for Almond Model) |
|
- | |||||
| 3 | 3353950 | Spacer, Cabinet To Top (4) |
|
$ 6.74 | |||||
| 4 | WP681414 | Screw (Replaces: 384435) |
|
Immediately | $ 7.07 | ||||
| 5 | 3358501 | Panel, Front (for Almond Model) |
|
- | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.02 | ||||
| 8 | WP3356311 | Screw & Washer, Lid Switch (1) (Replaces: 3356311) |
|
$ 6.98 | |||||
| 11 | 285671 | Switch, Lid (Replaces: 3352632) |
|
Immediately | $ 64.13 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 355274) |
|
Immediately | $ 6.47 | ||||
| 14 | WP21097 | Pad, Hinge (Replaces: 21097) |
|
$ 7.02 | |||||
| 15 | WP54584 | Hinge, Lid (l.h.) (Replaces: 54584) |
|
$ 30.09 | |||||
| 16 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 24.71 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 19 | 3360832 | Lid (for Almond Model) |
|
- | |||||
| 20 | WP358684 | Strike, Lid Switch (Replaces: 358684) |
|
Immediately | $ 6.90 | ||||
| 21 | 3353812 | Locator |
|
$ 5.51 | |||||
| 22 | 356908 | Bumper, Lid (2) |
|
$ 8.35 | |||||
| 23 | WP9741232 | Screw (4) (Replaces: 718258) |
|
Immediately | $ 4.56 | ||||
| 26 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 28 | 3353993 | Screw |
|
$ 5.86 | |||||
| 32 | WP356907 | Rivet (2) (Replaces: 356907) |
|
$ 6.66 | |||||
| 33 | 358472 | Stop, Push-in Top |
|
- | |||||
| 36 | 3353709 | Panel, R.h. |
|
- | |||||
| 37 | 3353715 | Panel, L.h. |
|
- | |||||
| 38 | 387371 | Plug, Lock |
|
$ 11.36 | |||||
| 39 | 3353949 | Pin, Locator |
|
$ 6.23 | |||||
| 40 | WP18776 | Lock, Front (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 41 | 3353948 | Bracket, Lock |
|
$ 12.34 | |||||
| 43 | 63554 | Rivet |
|
- | |||||
| 44 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 45 | 3357851 | Shield, Lid Switch |
|
- |
