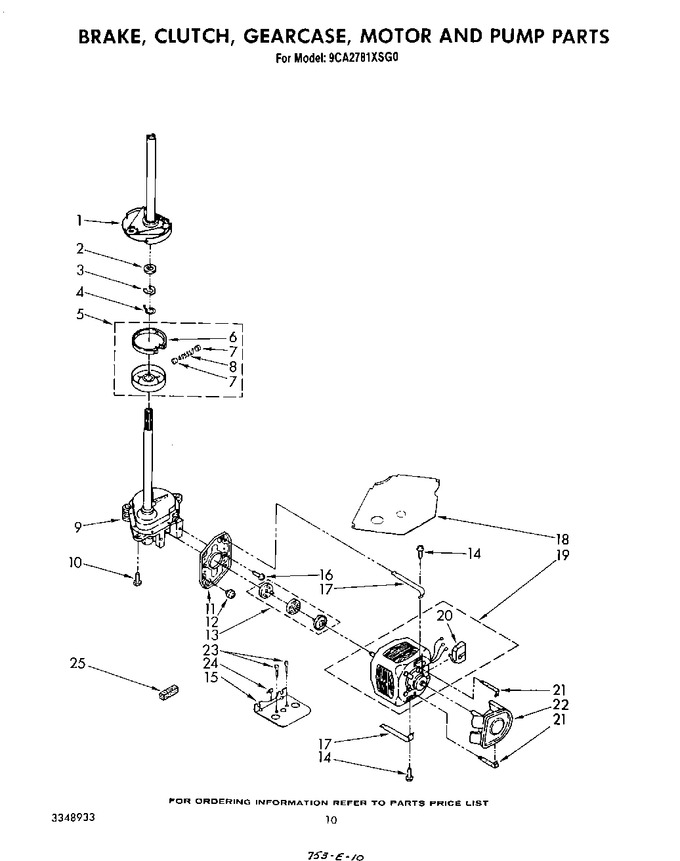

9CA2781XSW0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10820043	Brake & Drive Tube (complete) (refer To Page 13 For Further Breakdown) (Replaces: 388952)		Immediately	$ 195.58
2	WP63292	Washer, Spin Tube Thrust (Replaces: 63292)		Immediately	$ 6.94
3	WPW10080230	Ring, Spin Tube Support (Replaces: 62697)			$ 10.82
4	285353	Ring, Retainer (Replaces: 63283)			$ 7.30
5	285785	Clutch (complete) (Replaces: 388949)		Immediately	$ 61.22
6	285790	Band & Lining, Clutch (includes Illus. 7 & 8) (Replaces: 388190)		Immediately	$ 38.92
7	WP62646	Cap, Clutch Spring (2) (Replaces: 62646)			$ 6.80
8	285790	Spring, Clutch (Replaces: 387712)		Immediately	$ 38.92
9	3363395	Gearcase (complete) (refer To Page 12 For Further Breakdown) (Replaces: 3348565)			$ 390.36
10	3349491	Screw, Gearcase To Base (3) (5/16-24 X 3/4)	Appelez-nous	-
11	WP62611	Plate, Motor Mount To Gearcase (Replaces: 62611)			$ 105.39
12	WP62691	Grommet, Motor (4) (Replaces: 62691)			$ 10.64
13	285753A	Coupling, Motor And Isolation (Replaces: 285140)		Immediately	$ 23.31
14	WP273556	Screw (2) No.10-16 X 5/8 (Replaces: 357640)		Immediately	$ 7.04
15	WP3946532	Plate, Motor (Replaces: 63761)			$ 28.15
16	WP3400516	Screw, 5/16-24 X 5/8 (2) (Replaces: 98062)		Immediately	$ 6.47
17	WPW10086010	Retainer, Motor (2) (Replaces: 3349637)			$ 7.15
18	W10838408	Shield, Tub To Motor (Replaces: 3349282)			$ 33.69
19	3349949	Motor, Main Drive	Appelez-nous	-
20	62851	Switch, Main Drive Motor	Appelez-nous	-
21	WP8546127	Retainer, Pump (2) (Replaces: 62700)			$ 7.33
22	WP3363394	Pump, Complete (Replaces: 3348015)		Immediately	$ 55.49
23	238614	Bumper (2)			$ 72.68
24	3349322	Clip	Appelez-nous	-
25	3350013	Foam	Appelez-nous	-
