SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts

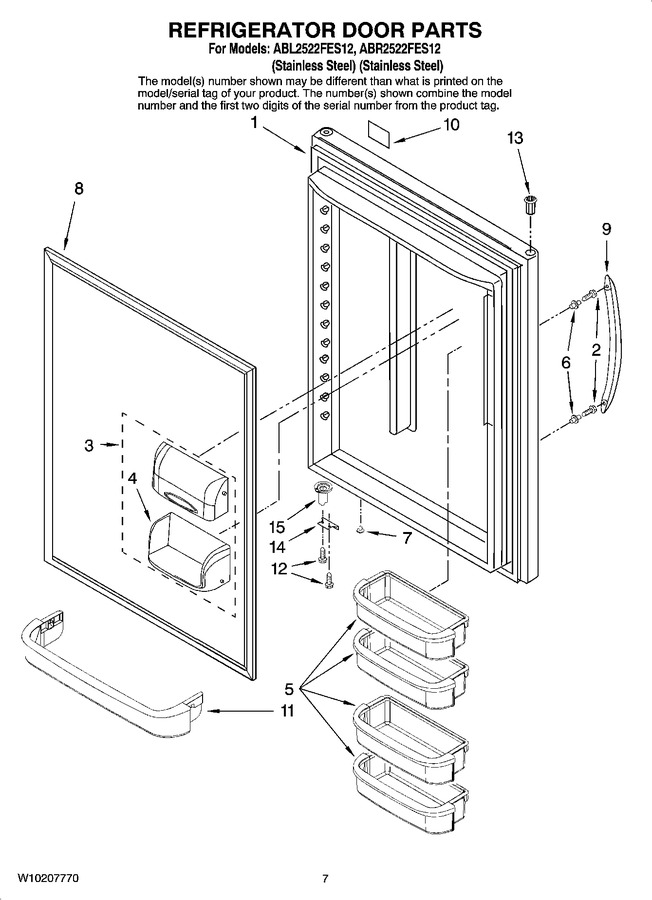

05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023834SQ		Refrigerator Door (w/liner) (right)		Appelez-nous	-
1	W10205209		Refrigerator Door (w/liner) (left)		Appelez-nous	-
2	WP3387230		Screw   (Replaces: 67002935)			Immediately	$ 7.86
3	WP12744905		Door, Dairy   (Replaces: 67003819)				$ 102.59
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
5	WP67001021		Bucket, Medium (4)   (Replaces: 67001021)				$ 76.46
6	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 11.30
7	67004838		Plug, Button (black)   (Replaces: W10153326)				$ 10.09
8	W10849442		Door Gasket, Magnetic (black)   (Replaces: W10133881)				$ 325.40
9	W10136873		Door Handle (black)				$ 99.41
10	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 56.47
11	67002477		Retainer, Ref Door		Appelez-nous	-
12	WP98165		Screw   (Replaces: 67006287)				$ 7.71
13	67004978		Bushing (black)			Immediately	$ 19.89
14	W11708403		Stop, Door (black)   (Replaces: 67003780)				$ 13.28
15	WP67003639		Closure, Door (black)   (Replaces: 67003639)			Immediately	$ 81.29

    View Diagram in Separate Window       Print Part List
