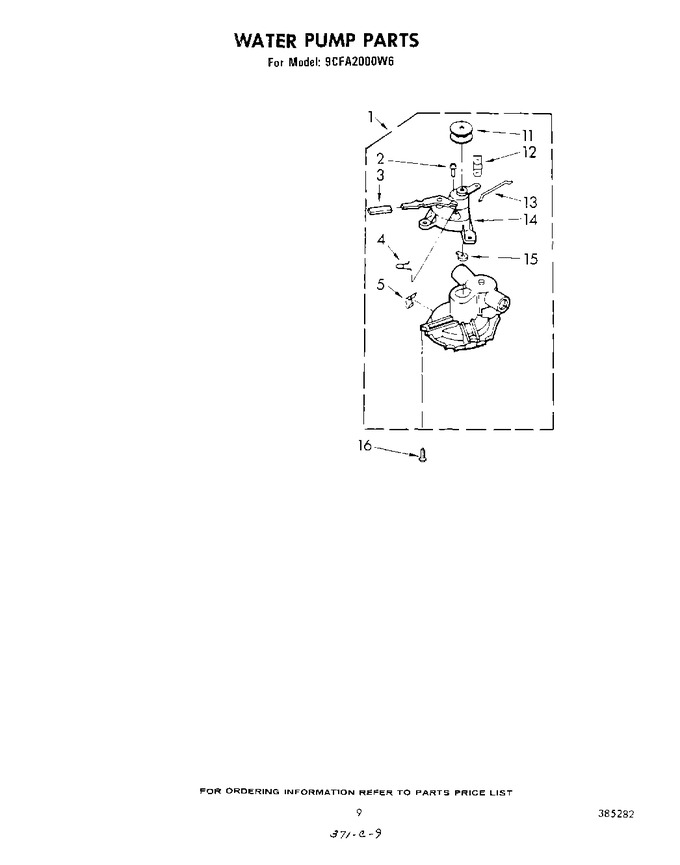

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359131		Pump Assembly		Appelez-nous	-
2	WP273556		Screw, 10-12 X 5/8   (Replaces: 273556)			Immediately	$ 7.04
3	96175		Sleeve		Appelez-nous	-
4	96266		Spring, Toggle		Appelez-nous	-
5	96262		Clip, Retainer		Appelez-nous	-
11	359630		Pulley		Appelez-nous	-
12	355538		Lever, Valve		Appelez-nous	-
13	96264		Rod, Connecting		Appelez-nous	-
14	383750		Bearing Block Assembly		Appelez-nous	-
15	96265		Wick, Oil		Appelez-nous	-
16	386011		Screw, 5/16-18 X 7/8   (Replaces: 96867)		Appelez-nous	-
