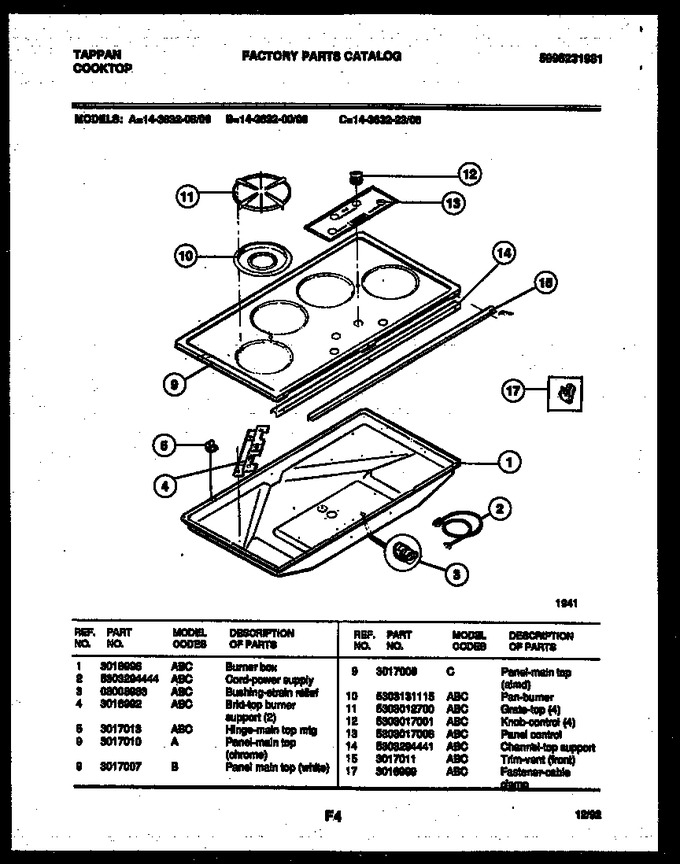

02 - Cooktop Parts
03 - Burner, Manifold And Gas Control
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016996 | Burner Box |
|
- | |||||
| 2 | 5303294444 | Cord-power Supply |
|
- | |||||
| 3 | 08008983 | Bushing-strain Relief |
|
- | |||||
| 4 | 3016992 | Brkt-top Burner Support (2) |
|
- | |||||
| 9 | 3017010 | Panel-main Top (chrome) |
|
- | |||||
| 10 | 5303131115 | Pan-burner |
|
$ 15.62 | |||||
| 11 | 5303012700 | Grate - Top (4) |
|
- | |||||
| 12 | 5303017001 | Knob-control (4) |
|
- | |||||
| 13 | 5303017006 | Panel-control |
|
- | |||||
| 14 | 5303294441 | Channel-top Support |
|
- | |||||
| 15 | 3017011 | Trim Vent-front |
|
- | |||||
| 17 | 3016999 | Fastener-cable Clamp |
|
- |
