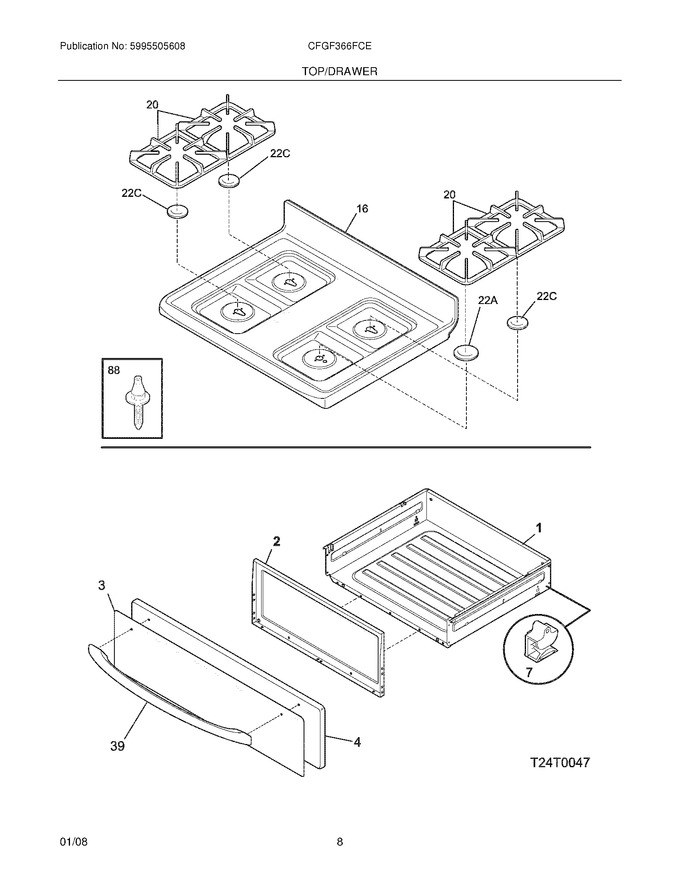

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
3	316446100		Overlay,drawer ,stainless ,outer		Appelez-nous	-
4	316403406		Panel,drawer ,black ,front				$ 83.69
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316202353		Main Top,black				$ 210.53
20	316202400		Grate,black		Appelez-nous	-
39	316270200		Handle,door ,black				$ 136.40
88	316099500		Pin,guide ,(2)				$ 6.53
22A	316219900		Cap,14k Burner ,black				$ 112.98
22C	316213500		Cap,9.5k Burner ,black				$ 43.23
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316437500		Screw,handle Mtg. ,10 14 X .4 Trus ,(2)				$ 13.39
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
