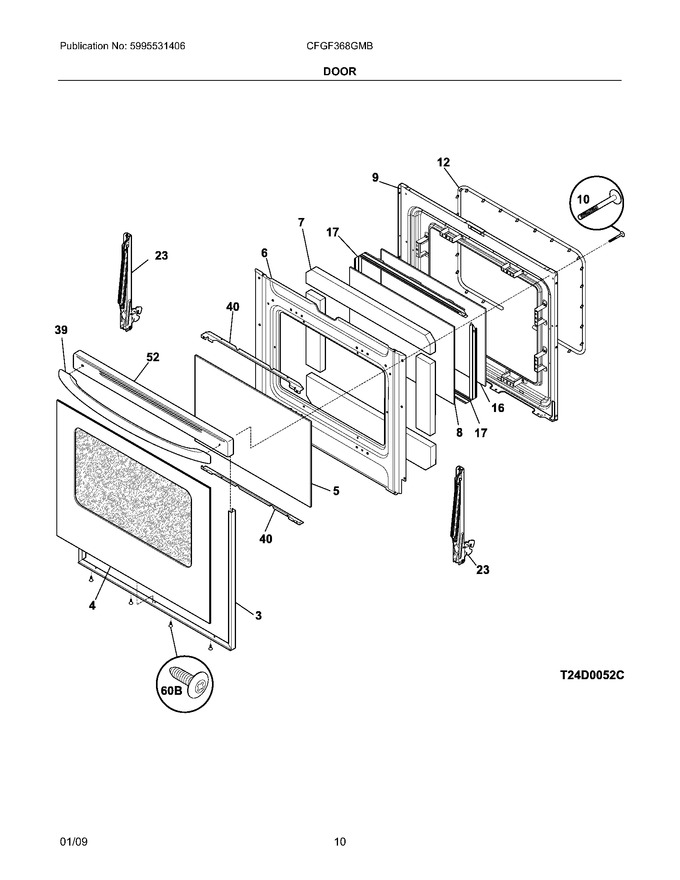

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316402002		Trim,oven Door ,black				$ 54.92
4	316452801		Door Assembly,glass/overlay ,black/slvr Mist,w/foil				$ 240.40
5	316446401		Glass,oven Door ,airwash   (Replaces: 316446400)			Immediately	$ 125.13
6	316402306		Shield,wool		Appelez-nous	-
7	316403900		Insulation,oven Door			Immediately	$ 72.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423801		Liner,oven Door				$ 128.63
10	316433300		Screw,10-14 X 2.125`` ,handle Mtg.			Immediately	$ 27.50
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
16	316117501		Glass,oven Door ,inner				$ 148.16
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	316537303		Hinge,oven Door ,red ,(2)		Appelez-nous	-
39	316270200		Handle,door ,black				$ 136.40
40	316446301		Bracket,glass ,airwash ,(2)				$ 59.96
52	316575501		Cap,door Trim ,black   (Replaces: 316468401)				$ 110.73
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
