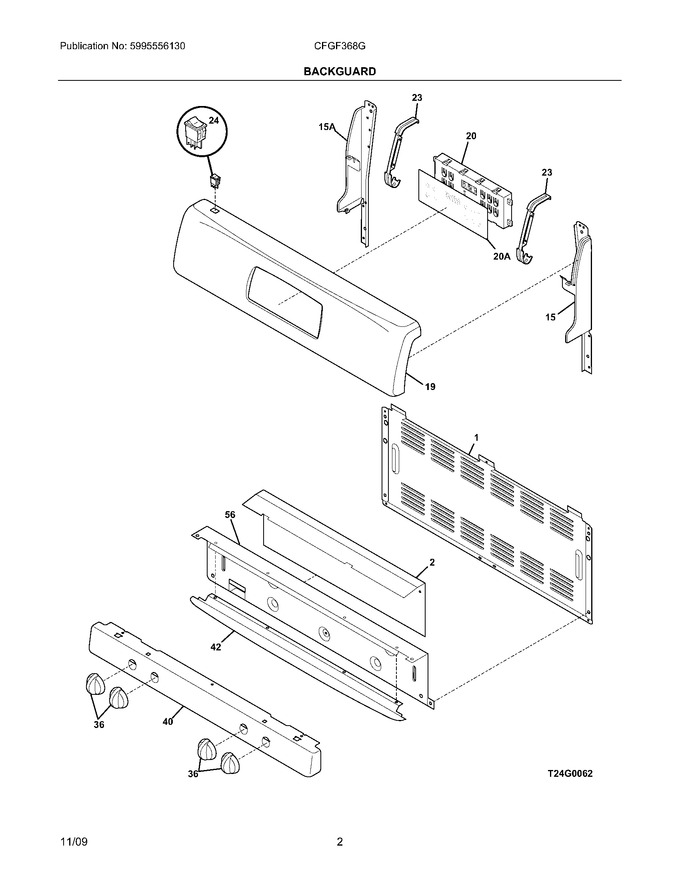

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316497600		Shield,backguard ,inner				$ 66.31
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316445222		Panel-backguard,white		Appelez-nous	-
23	316441600		Bracket-clock Mtg,black				$ 20.48
36	316220008		Knob,top Valve ,white ,(4)			Immediately	$ 37.16
40	316489009		Panel-manifold,white				$ 73.61
42	316416205		Trim,extrusion ,gray   (Replaces: 316416201)				$ 51.57
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316419137		Overlay,clock ,white ,es300   (Replaces: 316419104)			Immediately	$ 31.34
F20	5304509983		Clock/timer,electronic ,es300   (Replaces: 316557101)			Immediately	$ 186.73
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316448701)			Immediately	$ 16.13
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
