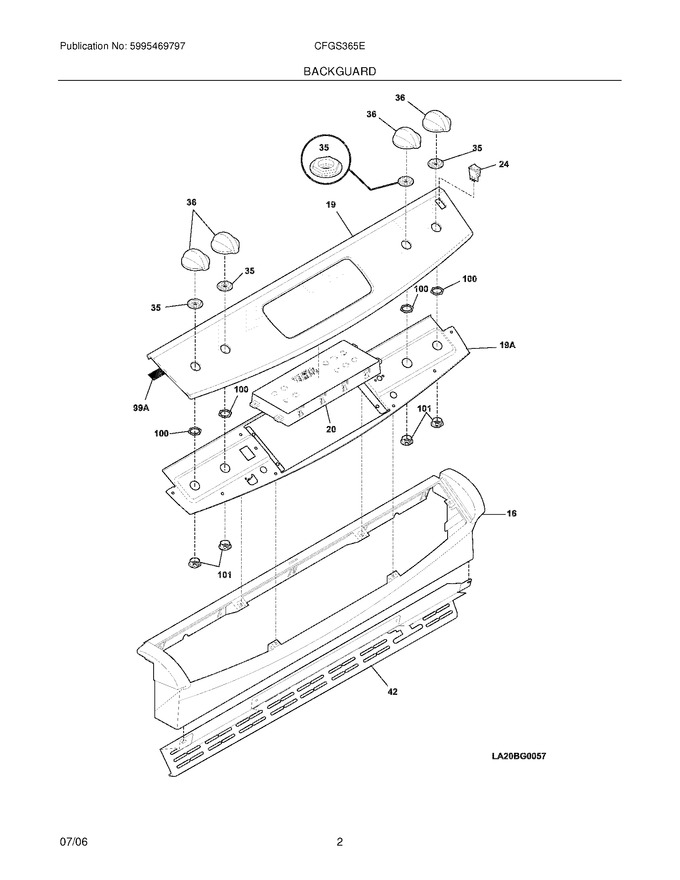

03 - Backguard
05 - Burner
07 - Body
09 - Top
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318299100 | Console,assy. ,white |
|
$ 418.11 | |||||
| 19 | 318235185 | Panel,control ,white |
|
$ 278.25 | |||||
| 35 | 318233721 | Retainer,control Panel ,white |
|
$ 19.90 | |||||
| 36 | 316223025 | Knob,control ,white |
|
$ 40.06 | |||||
| 42 | 318298011 | Trim,vent ,black ,upper |
|
$ 49.19 | |||||
| 100 | 318233800 | Nut,hex |
|
$ 63.53 | |||||
| 101 | 318233400 | Bushing,retainer |
|
$ 43.21 | |||||
| 19A | 318224402 | Panel,control Mtg. |
|
- | |||||
| 99A | 318223900 | Gasket,dark Grey |
|
Immediately | $ 82.80 | ||||
| F20 | 318312400 | Clock/timer,electronic ,white ,es300 |
|
$ 182.20 | |||||
| F24 | 5304527842 | Switch-rocker, White (Replaces: 316005607) |
|
Immediately | $ 16.13 | ||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(2) |
|
$ 15.17 | |||||
| NI | 5304453707 | Screw, 8-32 X 3/8 (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| NI | 5304453707 | Screw,control Mtg. |
|
Immediately | $ 15.92 | ||||
| NI | 316419137 | Overlay,control ,white (Replaces: 318214512) |
|
Immediately | $ 31.34 | ||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- |
