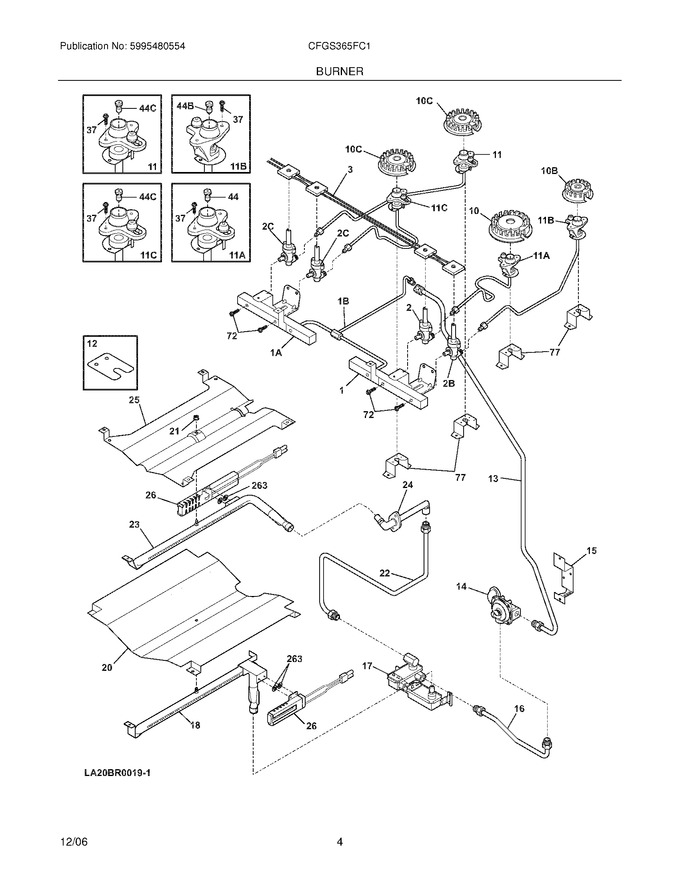

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318305600		Manifold,right Side				$ 129.70
12	318369902		Bracket,support ,(2)		Appelez-nous	-
13	318305110		Tube,regulator ,to Manifold				$ 105.84
15	318262810		Bracket,regulator		Appelez-nous	-
16	318289500		Tube,regulator Valve				$ 75.84
20	318290400		Baffle,bake Burner				$ 120.65
21	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
22	318305200		Tube,broil Supply		Appelez-nous	-
23	318292300		Burner,broil ,14000				$ 99.75
25	316401301		Baffle,broil Burner				$ 173.57
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
44	316237901		Orifice,top Burner ,12k				$ 64.46
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318192606		Bracket,burner Mtg ,(4)		Appelez-nous	-
263	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
1A	318305601		Manifold,left Side				$ 105.42
1B	318305410		Tube,manifold ,3/8 ,interconnect				$ 294.13
44B	316237903		Orifice-top Burner,5k				$ 67.83
44C	316237902		Orifice,top Burner ,9.5k				$ 65.22
F10	316212300		Burner,sealed ,12k				$ 105.95
F10B	316206400		Burner,sealed ,5k		Appelez-nous	-
F10C	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F11	318306305		Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube		Appelez-nous	-
F11A	318306306		Ignitor/orifice Assy.,top Burner ,right Front,12k ,w/holder ,tube				$ 129.89
F11B	318306307		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube		Appelez-nous	-
F11C	318306304		Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,w/holder ,tube				$ 167.63
F14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
F17	316404900		Valve,safety			Immediately	$ 394.35
F18	318292200		Burner,oven ,18000				$ 109.35
F2	318233920		Valve,top Burner ,12000 Btu				$ 172.94
F24	318267801		Mixer Elbow,broiler				$ 113.03
F26	5303935066		Ignitor,burner   (Replaces: 316428600)			Immediately	$ 59.58
F2B	318233900		Valve,top Burner ,5000 Btu				$ 161.53
F2C	318233910		Valve,top Burner ,9500 Btu				$ 132.56
F3	318232600		Wiring Harness,w/igntr Switch		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(8)		Appelez-nous	-
NI	318186908		Lp Conversion Kit				$ 47.62
NI	318199725		Wiring Harness,ignitor		Appelez-nous	-
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	5303323133		Screw,8-18 X 0.500		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318268600		Harness,wiring ,valve				$ 56.32
NI	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-
