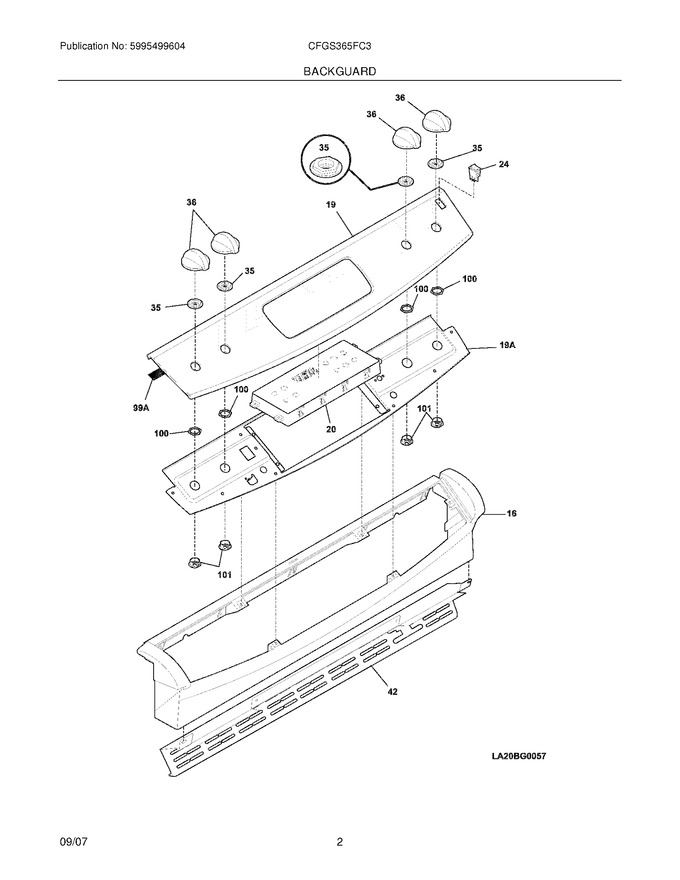

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	318235186		Panel,control ,black				$ 269.85
35	318233720		Retainer,control Panel ,black				$ 20.48
36	316223024		Knob,control ,black				$ 60.32
42	318298011		Trim,vent ,black ,upper				$ 49.19
100	318233800		Nut,hex				$ 63.53
101	318233400		Bushing,retainer				$ 43.21
19A	318224402		Panel,control Mtg.		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	318312401		Clock/timer,electronic ,black ,es300				$ 297.31
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	316419141		Overlay,control ,black   (Replaces: 318214514)			Immediately	$ 56.87
NI	318203873		Owners Manual		Appelez-nous	-
NI	318271921		Wiring Diagram		Appelez-nous	-
NI	318201673		Instructions,installation		Appelez-nous	-
NI	318200183		Electronic Timer Guide		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5304453707		Screw,control Mtg.			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
