SELECT A DIAGRAM
01 - Cover

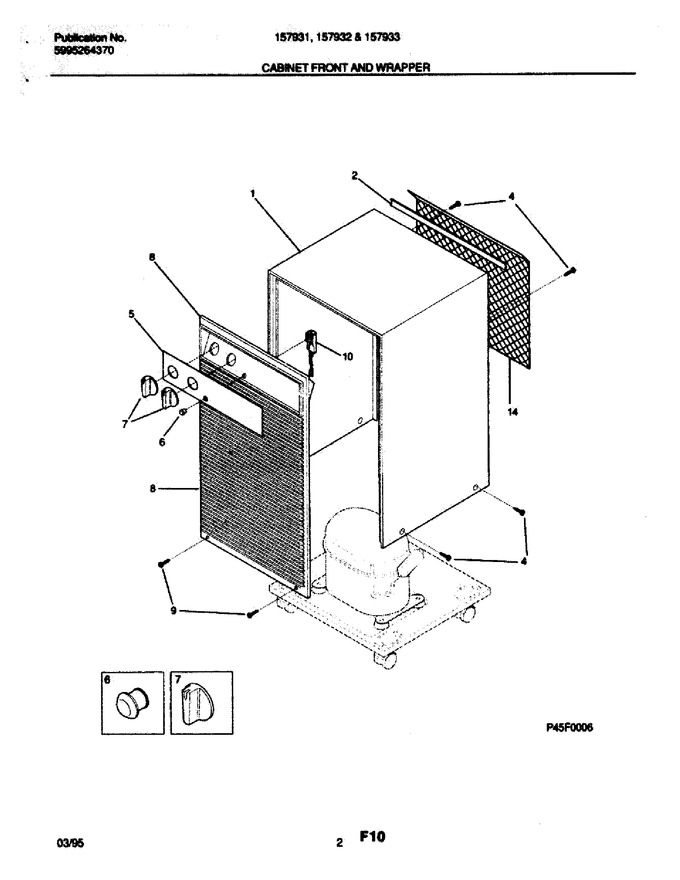

03 - Cabinet Front And Wrapper
05 - Control Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016457 | Wrapper |
|
- | |||||
| 2 | 3002958 | Trim |
|
- | |||||
| 4 | 5303015427 | Screw |
|
- | |||||
| 5 | 327600701 | Dial Plate |
|
- | |||||
| 6 | 08012705 | Lens-light |
|
- | |||||
| 7 | 5308016109 | Knob-control |
|
- | |||||
| 8 | 5308016464 | Panel-front |
|
- | |||||
| 9 | 5303271346 | Screw-front |
|
- | |||||
| 10 | 5303300841 | Light |
|
- |
