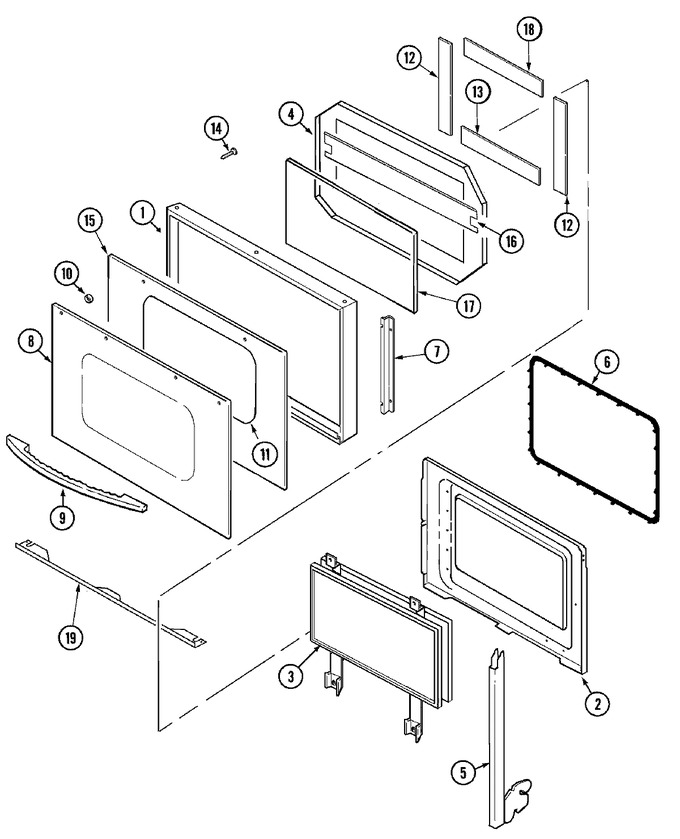

SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door (upper & Lower Acb6260as)
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 1 | 74006751 | Frame, Door (blk) | 10 |
|
- | ||||
| 2 | 74005642 | Liner, Oven Door | 10 |
|
- | ||||
| 3 | 74005641 | Window Assembly | 10 |
|
- | ||||
| 4 | 74005648 | Retainer, Insulation | 10 |
|
- | ||||
| 5 | WP74008014 | Hinge, Door (Replaces: 71003350) | 10 |
|
Immediately | $ 129.55 | |||
| 5 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 6 | WP71001841 | Seal, Door (Replaces: 71001841) | 10 |
|
Immediately | $ 160.14 | |||
| 7 | 74003650 | Retainer, Glass | 10 |
|
- | ||||
| 8 | 74006966 | Panel, Door Overlay (stl) | 10 |
|
- | ||||
| 9 | 74007898 | Handle, Door | 10 |
|
- | ||||
| 9 | 74005614 | Heat Sink | 10 |
|
- | ||||
| 10 | 74003986 | Spacer, Door Glass (blk) | 10 |
|
$ 13.08 | ||||
| 10 | Y700861 | Spacer Block | 10 |
|
- | ||||
| 11 | WP74009029 | Gasket, Rubber (Replaces: 74004727) | 10 |
|
Immediately | $ 145.22 | |||
| 12 | 71001839 | Insulation, Door (side) | 10 |
|
- | ||||
| 13 | 71001838 | Insulation, Door (btm) | 10 |
|
- | ||||
| 14 | 7101P326-60 | Screw | 10 |
|
- | ||||
| 15 | 8270P090-60 | Tape, Foil (3`` Wide) | 10 |
|
- | ||||
| 15 | 74004466 | Tape, Seal Silicon | 10 |
|
- | ||||
| 15 | 74006958 | Glass, Door (blk) | 10 |
|
- | ||||
| 16 | 74006963 | Bracket, Door Handle | 10 |
|
- | ||||
| 17 | 74003649 | Glass, Door | 10 |
|
- | ||||
| 18 | 74005598 | Insulation, Top | 10 |
|
- | ||||
| 19 | 74005599 | Support, Door Panel (lower) | 10 |
|
- | ||||
| NI | 74006943 | Nameplate (amana) | 10 |
|
- |
