01 - Body
02 - Control Panel

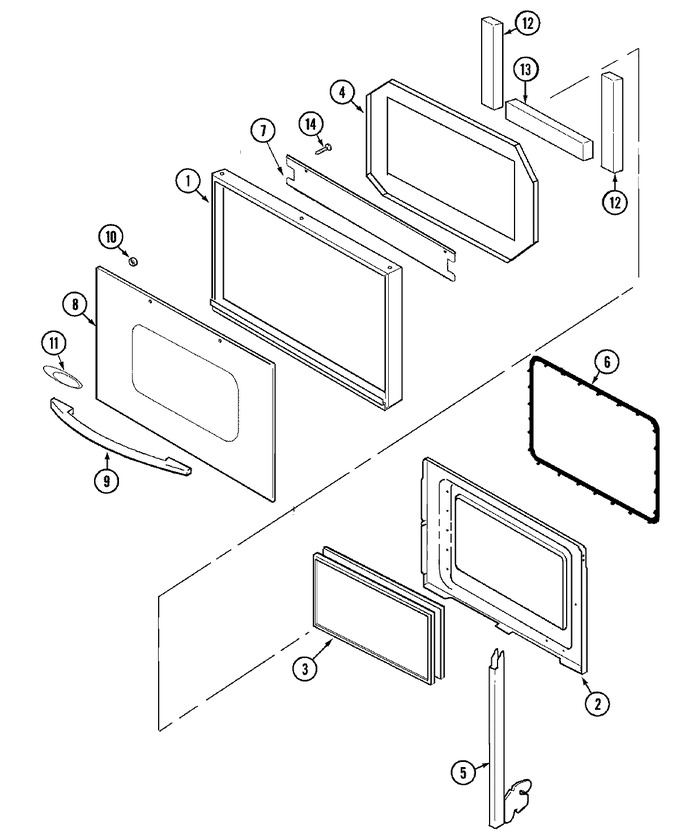

03 - Door (upper & Lower-acb6260ab/aw)
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001827 | Screw | 10 |
|
- | ||||
| 1 | 74006752 | Frame, Door (wht) | 10 |
|
$ 185.25 | ||||
| 2 | 74005642 | Liner, Oven Door | 10 |
|
- | ||||
| 2 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 3 | 74005641 | Window Assembly | 10 |
|
- | ||||
| 4 | 74005648 | Retainer, Insulation | 10 |
|
- | ||||
| 5 | 71003352 | Hinge, Door | 10 |
|
- | ||||
| 5 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 6 | WP71001841 | Seal, Door (Replaces: 71001841) | 10 |
|
Immediately | $ 160.14 | |||
| 7 | 74006963 | Bracket, Door Handle | 10 |
|
- | ||||
| 8 | 74006952 | Glass, Door (wht) | 10 |
|
- | ||||
| 9 | 74006965 | Handle, Door (wht) | 10 |
|
- | ||||
| 10 | 8010P073-60 | Spacer, Handle | 10 |
|
- | ||||
| 11 | 74006943 | Nameplate (amana) | 10 |
|
- | ||||
| 12 | 71001839 | Insulation, Door (side) | 10 |
|
- | ||||
| 13 | 71001838 | Insulation, Door (btm) | 10 |
|
- | ||||
| 14 | 7101P326-60 | Screw | 10 |
|
- |
