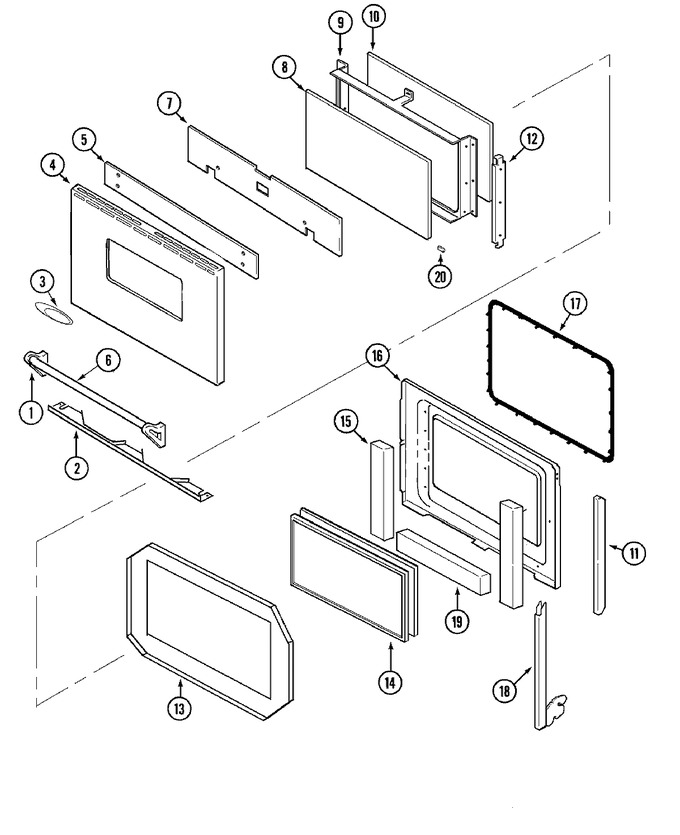

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006941		Trim, Handle End Cap	10	Appelez-nous	-
2	W10828565		Screw, Black   (Replaces: 7101P270-60)	10			$ 6.70
2	71003111		Trim, Door (lwr)	10	Appelez-nous	-
3	74006943		Nameplate (amana)	10	Appelez-nous	-
4	74006944		Panel, Door (stnls)	10	Appelez-nous	-
4	704745		Screw, Flat	10	Appelez-nous	-
5	71002918		Insulation, Door Panel	10	Appelez-nous	-
6	74006942		Handle, Door	10	Appelez-nous	-
6	WP488234		Screw   (Replaces: 71002965)	10			$ 6.07
6	71001403		Washer, Alum	10	Appelez-nous	-
7	74005614		Heat Sink	10	Appelez-nous	-
8	74006945		Glass, Outer	10	Appelez-nous	-
9	71002993		Bracket, Glass	10	Appelez-nous	-
9	71002992		Support, Glass Bracket	10	Appelez-nous	-
10	71002801		Glass, Inner	10	Appelez-nous	-
11	71002916		Bracket, Door Filler	10	Appelez-nous	-
12	74007833		Clamp, Glass	12	Appelez-nous	-
12	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
12	71002796		Clamp, Glass	10	Appelez-nous	-
13	74005648		Retainer, Insulation	10	Appelez-nous	-
14	74005641		Window Assembly	10	Appelez-nous	-
15	71001839		Insulation, Door (side)	10	Appelez-nous	-
16	74005642		Liner, Oven Door	10	Appelez-nous	-
16	WPW10296816		Screw (10-32x.625 Sq.hd.)   (Replaces: 71001940)	10			$ 6.77
17	WP71001841		Seal, Door   (Replaces: 71001841)	10		Immediately	$ 160.14
18	WP74008014		Hinge, Door   (Replaces: 71003350)	10		Immediately	$ 129.55
19	71001838		Insulation, Door (btm)	10	Appelez-nous	-
20	WP74005546		Spacer, Rubber   (Replaces: 74005546)	12			$ 9.48
20	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
