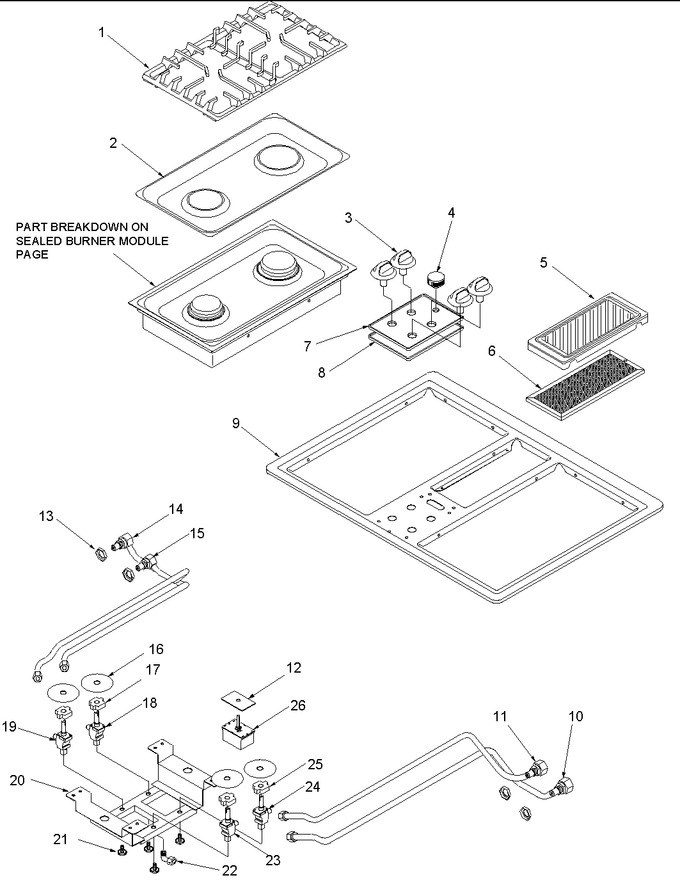

01 - Cavity


02 - Main Top


03 - Sealed Gas Module


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316175MB		Grate-double Cast(matte Blk)9k		Appelez-nous	-
2	315600B		Bowl, Burner-double (blk)9/12k				$ 32.81
3	WP32021804B		Knob, Top Burner (blk)   (Replaces: 32021804B)				$ 19.76
4	32031311B		Knob, Fan (blk)		Appelez-nous	-
5	316648G		Cover, Casting Vent-gas		Appelez-nous	-
6	315689B		Filter, Exhaust (blk)		Appelez-nous	-
7	32056301B		Glass, Control Panel (blk)		Appelez-nous	-
8	315725B		Frame-glass Control Panel(blk)		Appelez-nous	-
9	32032801B		Maintop, 30`` D/d Cooktop (blk)		Appelez-nous	-
10	31752601		Assy, Tube Orifice Right Front		Appelez-nous	-
11	31752501		Assy, Tube Orifice Right Rear		Appelez-nous	-
12	31726301		Shield, Switch-variable		Appelez-nous	-
13	31750116		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
14	31752301		Assy, Tube Orifice Left Rear		Appelez-nous	-
15	31752401		Assy, Tube Orifice Left Front		Appelez-nous	-
16	Y0314316		Shield, Switch		Appelez-nous	-
17	Y0315727		Switch, Spark (270 Deg)		Appelez-nous	-
18	31755702		Valve, Gas Lf 270deg 12k 3100		Appelez-nous	-
19	31755602		Valve, Gas 270deg Lr 9.7k 2800		Appelez-nous	-
20	Y0317060		Manifold, Gas		Appelez-nous	-
21	31750703		Screw, Valve (blk)		Appelez-nous	-
22	Y0316881		Fitting, 90 Deg Elbow		Appelez-nous	-
23	31755902		Valve, Gas 270 Deg Rf 9.7k3100		Appelez-nous	-
24	31755802		Valve, Gas 270 Deg Rr 7.6k 280		Appelez-nous	-
25	Y0315728		Switch, Spark/fan		Appelez-nous	-
26	Y0316913		Control, Fan Speed Variable				$ 104.04
NI	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
NI	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
