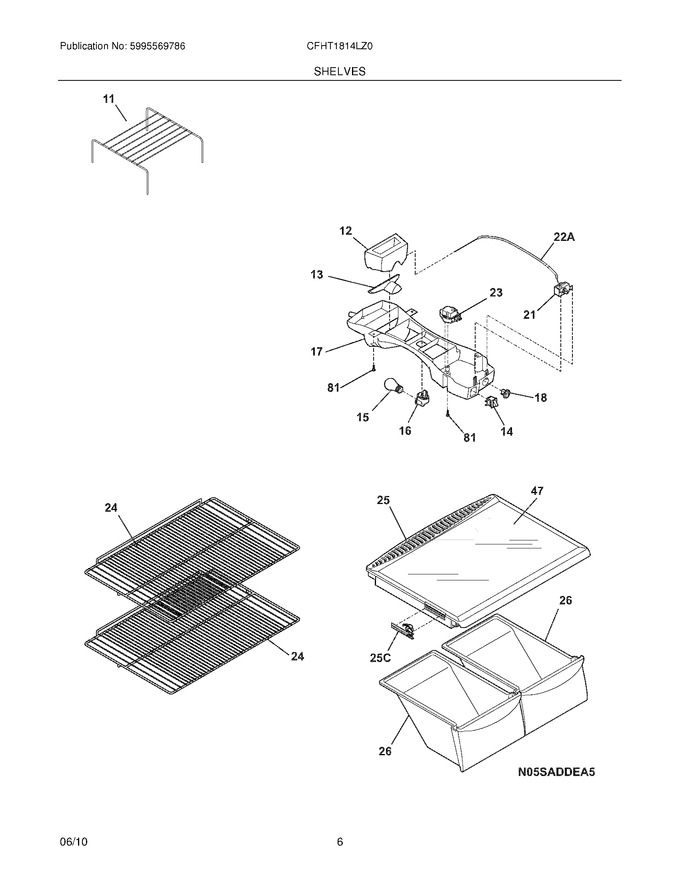

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5303282284 | Shelf-freezer,``table Type`` |
|
Immediately | $ 88.05 | ||||
| 12 | 241542001 | Diffuser,air ,top |
|
Immediately | $ 74.42 | ||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 240352703 | Control Box |
|
$ 53.72 | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| 24 | 240360908 | Shelf,sliding ,wire (Replaces: 240360905) |
|
Immediately | $ 94.98 | ||||
| 25 | 240364793 | Cover-crisper Pan (Replaces: 240364786) |
|
Immediately | $ 108.94 | ||||
| 26 | 240337103 | Pan-crisper,clear ,(2) ,no Graphics |
|
Immediately | $ 148.35 | ||||
| 47 | 240350608 | Insert-pan Cover,23.82`` X 15.50`` ,glass |
|
Immediately | $ 45.50 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 9.10 | |||||
| 25C | 241613502 | Control-humidity,lh |
|
$ 47.78 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| F23 | 215846604 | Timer-defrost (Replaces: 241809401) |
|
Immediately | $ 24.58 | ||||
| FNI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 242110224 | Energy Guide |
|
- | |||||
| NI | 240568606 | Seal (Replaces: 240568607) |
|
$ 12.76 | |||||
| NI | 5304455649 | Screw,pan Hd ,6-20 X 0.438 |
|
$ 17.01 | |||||
| NI | 5304535377 | Tape,aluminum ,3`` Wide (Replaces: 240570304) |
|
$ 31.36 |
