SELECT A DIAGRAM

01 - Cover

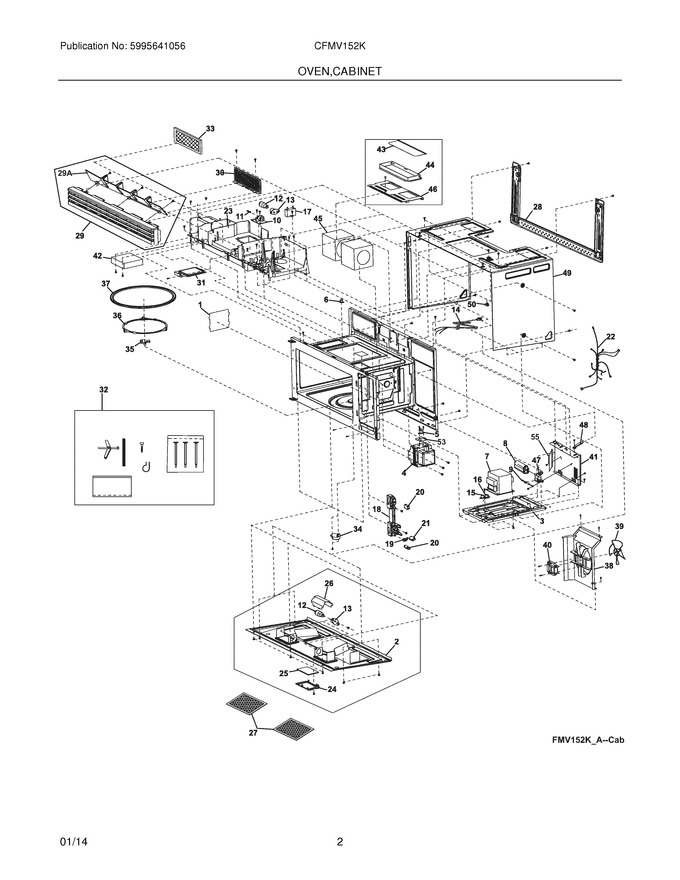

03 - Oven,cabinet


05 - Control Panel,door,miscellaneous


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509435		Cover,waveguide   (Replaces: 5304464061)			Immediately	$ 13.74
2	5304472476		Cover,unit Base				$ 257.51
3	5304464063		Base,transformer ,right Side				$ 103.01
12	5304461116		Lamp   (Replaces: 5304464090)			Immediately	$ 44.94
18	5304509457		Latch Hook   (Replaces: 5304464096)			Immediately	$ 43.79
23	5304464101		Duct,air				$ 185.59
24	5304464102		Frame,lens Holder		Appelez-nous	-
25	5304464103		Lens,cooktop Lamp ,glass				$ 39.53
26	5304464104		Cover,lamp				$ 59.27
28	5304520948		Plate,mounting ,rear   (Replaces: 5304464255)				$ 106.70
29	5304472493		Grille Assy,exhaust ,stainless				$ 322.29
30	5304464256		Cover,control Shield ,right				$ 64.16
31	5304464111		Cover,lamp ,oven Cavity		Appelez-nous	-
32	5304492057		Mounting Kit,with Templates				$ 104.74
35	5304509622		Coupler,turntable/motor   (Replaces: 5304472494)				$ 21.02
36	5304509438		Support,turntable Ring   (Replaces: 5304464115)				$ 52.20
37	5304509621		Turntable,tray ,glass   (Replaces: 5304464116)				$ 154.61
38	5304464117		Duct,cooling Fan				$ 63.53
41	5304472451		Duct,hood Intake ,right Side		Appelez-nous	-
42	5304472452		Vent,air Outlet				$ 105.81
43	5304509486		Damper,door ,exhaust Adapter   (Replaces: 5304464119)			Immediately	$ 27.73
44	5304509485		Frame,damper Housing ,exhaust Adapter   (Replaces: 5304464120)			Immediately	$ 25.32
46	5304472453		Cover,vent Motor				$ 167.95
47	5304464123		Retainer,capacitor Strap		Appelez-nous	-
48	5304464124		Spacer		Appelez-nous	-
49	5304472455		Cabinet,outer Casing ,black		Appelez-nous	-
50	5304509436		Mounting Nut Kit   (Replaces: 5304464598)			Immediately	$ 14.71
53	5304472439		Bracket,thermostat				$ 18.43
55	5304472454		Vent,air ,magnetron				$ 62.79
29A	5304472493		Louver,vent   (Replaces: 5304472495)				$ 322.29
F10	5304509452		Filter,noise ,electronic   (Replaces: 5304472447)			Immediately	$ 75.74
F11	5304509451		Fuse   (Replaces: 5304464087)			Immediately	$ 13.01
F13	5304464091		Lampholder,socket			Immediately	$ 65.73
F14	5304512501		Power Cord,electric   (Replaces: 5304464890)				$ 106.27
F15	5304509474		Thermostat,cutout ,transformer   (Replaces: 5304464093)			Immediately	$ 20.97
F16	5304509475		Thermostat,cutout ,vent Motor   (Replaces: 5304464094)			Immediately	$ 19.52
F17	5304464095		Capacitor,start				$ 91.67
F19	5304509458		Lever,switch   (Replaces: 5304464097)			Immediately	$ 10.17
F20	5304509460		Switch,interlock   (Replaces: 5304464099)			Immediately	$ 45.27
F21	5304509459		Switch,monitor   (Replaces: 5304464098)			Immediately	$ 30.84
F22	5304464891		Wiring Harness,main				$ 133.97
F27	5304517871		Filter,grease ,5`` X 7 1/2``   (Replaces: 5304464105)			Immediately	$ 26.91
F33	FRPAMRAF		Filter,charcoal ,2`` X 10``   (Replaces: 5304464577)			Immediately	$ 37.86
F34	5304509440		Motor,turntable   (Replaces: 5304464113)				$ 118.13
F39	5304509473		Fan Blade,cooling Fan   (Replaces: 5304464257)				$ 15.47
F4	5304519335		Magnetron   (Replaces: 5304464072)				$ 354.20
F40	5304464118		Motor,cooling Fan				$ 193.40
F45	5304491613		Motor,hood/vent Fan   (Replaces: 5304464121)				$ 427.54
F5	5304509469		Thermostat   (Replaces: 5304464073)			Immediately	$ 21.78
F6	5304509449		Thermostat,cutout ,oven Cavity   (Replaces: 5304464074)				$ 21.69
F7	5304515184		Transformer,power ,hv   (Replaces: 5304464075)			Immediately	$ 423.01
F8	5304528930		Capacitor,high Voltage   (Replaces: 5304464253)				$ 66.51
F9	5304509479		Diode,high Voltage   (Replaces: 5304472472)				$ 28.30
NI	5304472496		Screw Kit,black				$ 71.56

    View Diagram in Separate Window       Print Part List
