SELECT A DIAGRAM

01 - Cover


03 - Oven / Cabinet

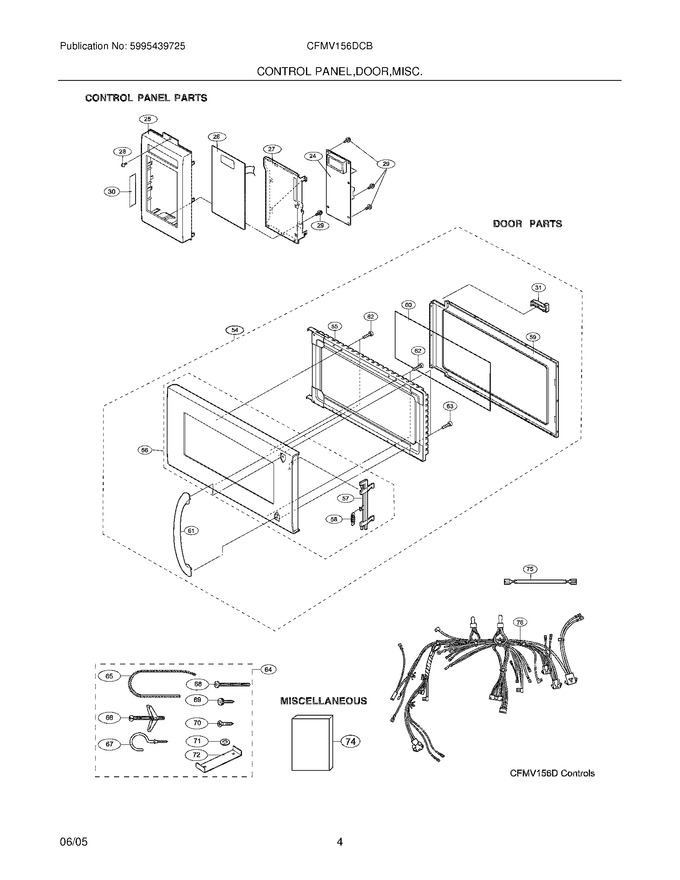

05 - Control Panel / Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	5304448513		Frame				$ 464.78
27	5304440281		Panel,control Mount				$ 33.39
28	5303319584		Screw,control Panel ,3mm X 10mm		Appelez-nous	-
29	5304440282		Screw,control Board ,3mm X 10mm		Appelez-nous	-
30	5304440346		Label,user Caution				$ 34.73
31	5304441871		Door Stop				$ 33.55
54	5304447862		Door Assembly,complete ,stainless Steel				$ 417.11
55	5304441887		Panel,inner Door ,black		Appelez-nous	-
56	N/A		Not Supplied On Stainless Steel		Appelez-nous	-
57	5304440314		Latch,door			Immediately	$ 51.13
58	5304440316		Spring,door Latch			Immediately	$ 61.00
59	5304441894		Frame,choke Cover ,inner Door				$ 82.37
60	5304440860		Seal,door ,film				$ 63.09
61	5304440323		Handle,door ,black				$ 129.49
62	5304451561		Screw,4mm X 8mm   (Replaces: 5303319634)				$ 16.63
63	5304441895		Screw		Appelez-nous	-
64	5304441832		Hardware,installation ,kit				$ 80.75
65	5303318761		Sleeve,power Cord ,grommet				$ 25.05
66	5303318762		Screw,toggle				$ 11.71
67	5303322979		Hook,screw-in ,cord Holder		Appelez-nous	-
68	5304453895		Screw,5mm X 60mm   (Replaces: 5303318764)				$ 16.68
69	5303318767		Screw,4mm X 12mm		Appelez-nous	-
70	5303318765		Screw,wood ,5mm X 35 Mm ,(6)		Appelez-nous	-
71	5303318766		Washer,flat ,30mm ,(2)				$ 19.74
72	5304441896		Bracket,scale Plate				$ 11.39
74	5304441897		Template,installation ,top				$ 18.64
F24	5304441906		Control Board				$ 327.02
F26	5304441868		Switch,touch Pad ,membrane ,black				$ 210.38
F75	5304441898		Wire,high Voltage-a		Appelez-nous	-
F76	5304441907		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
