SELECT A DIAGRAM

01 - Cover


03 - Oven/cabinet

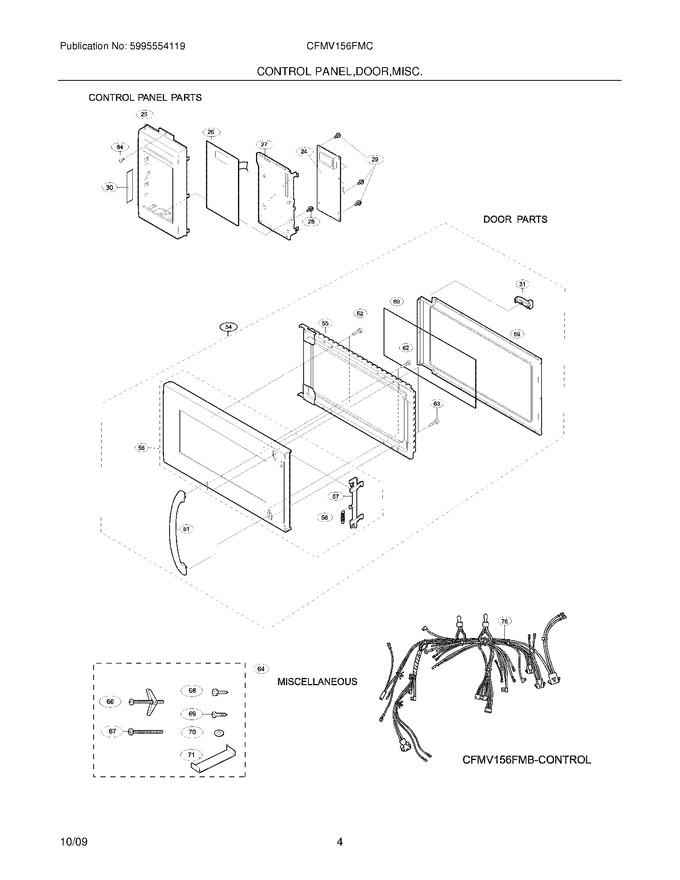

05 - Control Panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	5304453719		Frame,control Panel ,silver				$ 209.48
27	5304440281		Panel,control Mount				$ 33.39
28	5304458568		Screw,3 Mm X 10 Mm		Appelez-nous	-
29	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
30	5304440346		Label,user Caution				$ 34.73
31	5304441871		Door Stop				$ 33.55
54	5304453720		Door Assy,silver ,w/handle				$ 363.25
55	5304441887		Panel,inner Door ,black		Appelez-nous	-
56	5304461712		Frame,outer Door ,silver		Appelez-nous	-
57	5304440314		Latch,door			Immediately	$ 51.13
58	5304440316		Spring,door Latch			Immediately	$ 61.00
59	5304441894		Frame,choke Cover ,inner Door				$ 82.37
60	5304440860		Seal,door ,film				$ 63.09
61	5304440323		Handle,door ,black				$ 129.49
62	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
63	5304458213		Screw,4 Mm X 12 Mm		Appelez-nous	-
64	5304461272		Hardware,installation ,kit				$ 41.50
66	5303318762		Screw,toggle				$ 11.71
67	5304453895		Screw,5mm X 85mm				$ 16.68
68	5303318767		Screw,4mm X 12mm		Appelez-nous	-
69	5304453723		Screw,5mm X 35mm				$ 13.28
70	5304453724		Washer				$ 12.68
71	5304441896		Bracket,scale Plate				$ 11.39
84	5304441378		Screw,black   (Replaces: 5303319640)				$ 15.90
F24	5304441863		Control Board,printed Circuit				$ 442.37
F26	5304441868		Switch,touch Pad ,black				$ 210.38
F76	5304441907		Wiring Harness,main		Appelez-nous	-
NI	5304458571		Template,installation ,top/wall				$ 26.69

    View Diagram in Separate Window       Print Part List
