01 - Cover
03 - Oven/cabinet

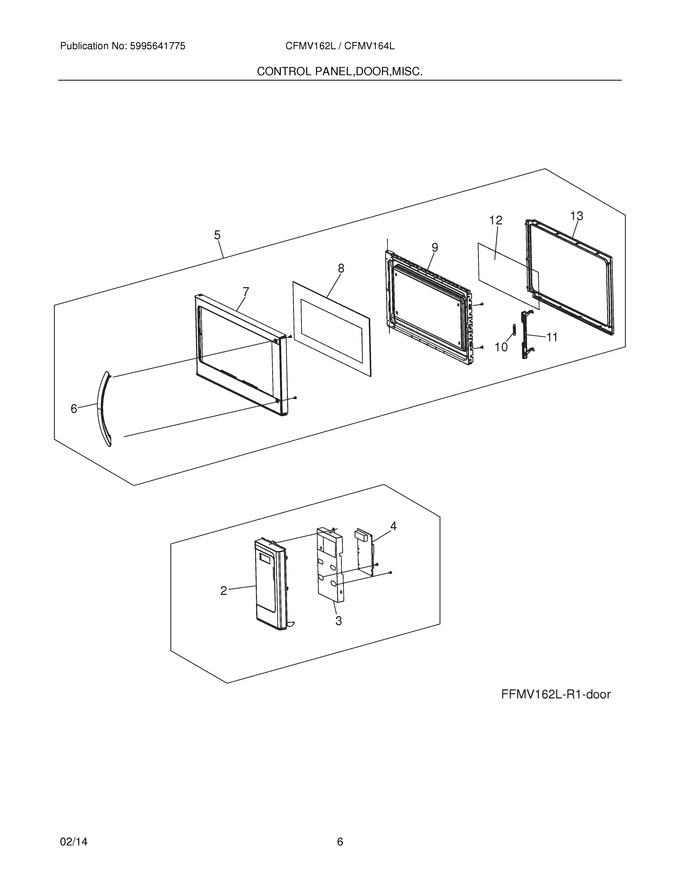

05 - Control Panel,door,miscellaneous
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304464065 | Panel,control Mount ,bracket |
|
$ 68.04 | |||||
| 5 | 5304477385 | Door Assembly,bisque |
|
$ 489.14 | |||||
| 6 | 5304477400 | Handle Assembly,door ,bisque |
|
$ 182.65 | |||||
| 7 | 5304477396 | Panel,outer Door ,bisque |
|
- | |||||
| 8 | 5304464135 | Panel,glass ,bisque ,outer Door |
|
- | |||||
| 9 | 5304472720 | Panel,inner Door ,bisque |
|
- | |||||
| 10 | 5304521953 | Spring,door Latch (Replaces: 5304464069) |
|
$ 7.23 | |||||
| 12 | 5304509640 | Choke Cover,inner Door (Replaces: 5304464071) |
|
$ 50.61 | |||||
| 13 | 5304474405 | Seal,door ,mylar Film |
|
$ 18.44 | |||||
| F11 | 4056021605 | Latch,door (Replaces: 5304477389) |
|
Immediately | $ 3.69 | ||||
| F2 | 5304477375 | Control Panel,w/membrane ,bisq |
|
$ 241.76 | |||||
| F4 | 5304477390 | Control Board,printed Circuit |
|
Immediately | $ 309.73 |
