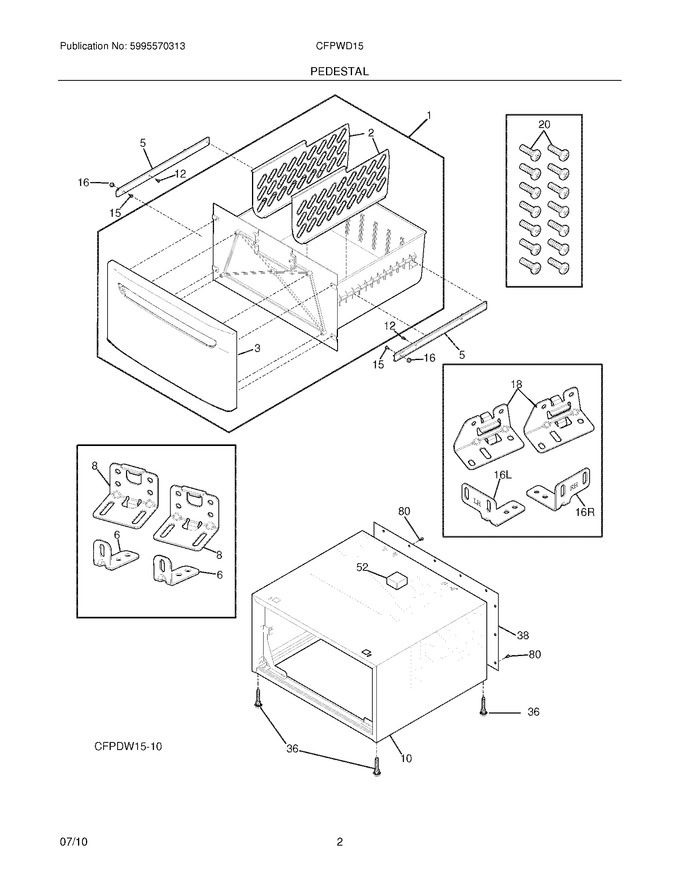

03 - Pedestal


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137295900		Drawer,assembly ,white				$ 278.04
2	134442300		Divider,drawer ,inner ,(2)		Appelez-nous	-
3	137359800		Panel,white ,front				$ 199.92
5	134443700		Slide,drawer Track ,(2)				$ 132.40
6	5304523385		Bracket,mounting ,front   (Replaces: 134830300)			Immediately	$ 30.90
8	5304523385		Bracket,mounting ,rear   (Replaces: 134816300)			Immediately	$ 30.90
10	134797110		Cabinet,white		Appelez-nous	-
12	5308014215		Screw,sheet Metal ,6-20 X 0.375 ,(2)   (Replaces: 134477400)				$ 2.28
15	134509900		Screw,machine ,6-32 X 0.625 ,(2)				$ 14.18
16	134510400		Nut,locking ,6-32 ,(2) ,nylon Insert				$ 17.64
18	137109400		Bracket,mounting ,rear				$ 17.38
20	134549700		Screw,10-16 X 0.500 ,(28)			Immediately	$ 12.29
36	131841600		Leveling Leg Assy,bolt,pad & Nut				$ 29.06
38	134802700		Panel,back		Appelez-nous	-
52	131931202		Dampener,vibration ,foam				$ 17.35
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
16L	137109300		Bracket,mounting ,front ,left Hand				$ 11.66
16R	137109310		Bracket,mounting ,front ,right Hand				$ 13.44
NI	137334000		Installation Kit,hardware				$ 244.07
NI	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
NI	137357400		Spacer		Appelez-nous	-
