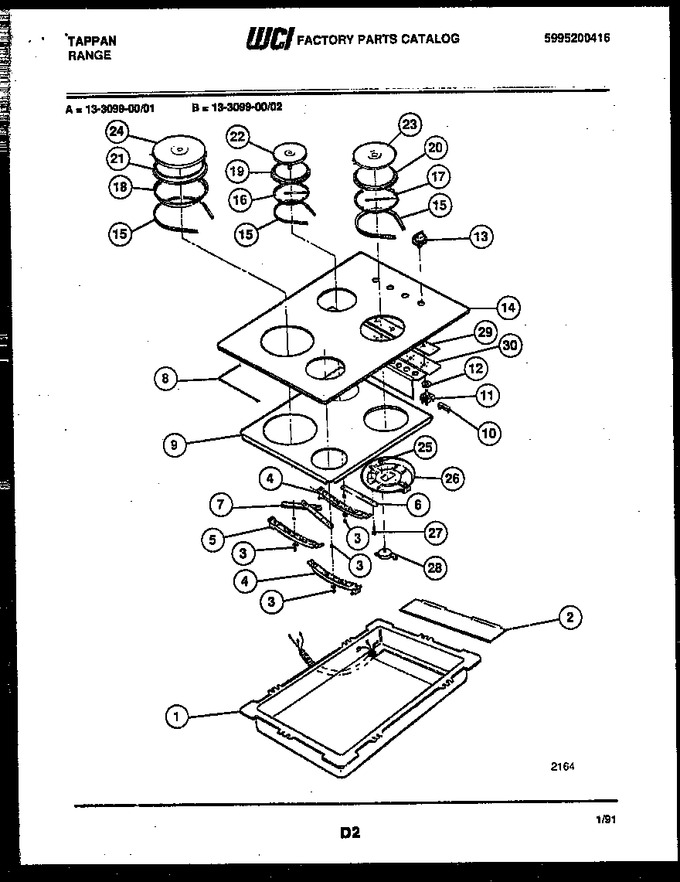

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200397 | Burner Box |
|
- | |||||
| 2 | 3051887 | Cover, Access |
|
- | |||||
| 3 | 08014256 | Nut |
|
- | |||||
| 4 | 3051122 | Brkt-fixing-sm |
|
- | |||||
| 5 | 3051120 | Brkt-fixing-lg |
|
- | |||||
| 6 | 3051620 | Retainer-anti-turn |
|
- | |||||
| 7 | 3051888 | Retainer-anit-turn W/a |
|
- | |||||
| 8 | 3051889 | Tape Foam |
|
- | |||||
| 9 | 3051632 | Support-solid Element |
|
- | |||||
| 9 | 5303270237 | Support-solid Element |
|
- | |||||
| 10 | 3051601 | Indicator Light |
|
- | |||||
| 11 | 5308017080 | Switch-top Unit-large |
|
- | |||||
| 11 | 5308017083 | Switch-top Unit-med (1) |
|
- | |||||
| 11 | 5303015702 | Switch Surface Unit Small (2) |
|
- | |||||
| 12 | 5301316432 | Bushing-snap |
|
- | |||||
| 13 | 5303270243 | Knob-control (3) |
|
- | |||||
| 13 | 5303270241 | Knob-control (3) |
|
- | |||||
| 13 | 5303270242 | Knob-control (1) |
|
- | |||||
| 13 | 5303270244 | Knob-control (1) |
|
- | |||||
| 14 | 5303270193 | Cook Top-glass-white |
|
- | |||||
| 14 | 5303270192 | Cook Top-glass-white |
|
- | |||||
| 15 | 5303051893 | Seal-element (4) |
|
- | |||||
| 16 | 5303051881 | Retainer, Small (2) |
|
- | |||||
| 17 | 5303051882 | Retainer, Medium |
|
- | |||||
| 18 | 3051883 | Retainer-center Ring-lg (1) |
|
- | |||||
| 19 | 5303270238 | Trim-ring-sm (2) |
|
- | |||||
| 20 | 5303270239 | Trim-ring-med (1) |
|
- | |||||
| 21 | 5303270240 | Trim-ring-lg (1) |
|
- | |||||
| 22 | 5303051142 | Element 1500w-sm (2) |
|
- | |||||
| 23 | 5308014251 | Element 2000w-med (1) |
|
- | |||||
| 24 | 5308014263 | Element 2500w-lg (1) |
|
- | |||||
| 25 | 08014255 | Nut |
|
- | |||||
| 26 | 3018333 | Shield-element |
|
- | |||||
| 27 | 08011955 | Screw (6) |
|
Immediately | $ 9.36 | ||||
| 28 | 3051885 | Switch-thermal Protector (4) |
|
- | |||||
| 29 | 3051608 | Seal-switch |
|
- | |||||
| 30 | 3051602 | Instrument Mounting Plate |
|
- | |||||
| NI | 191G002P01 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| NI | 5303051099 | Nut |
|
- | |||||
| NI | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| NI | 5301313060 | Screw 8-32 X 1/4 Pph |
|
- | |||||
| NI | 3051346 | Washer-spring |
|
- |
