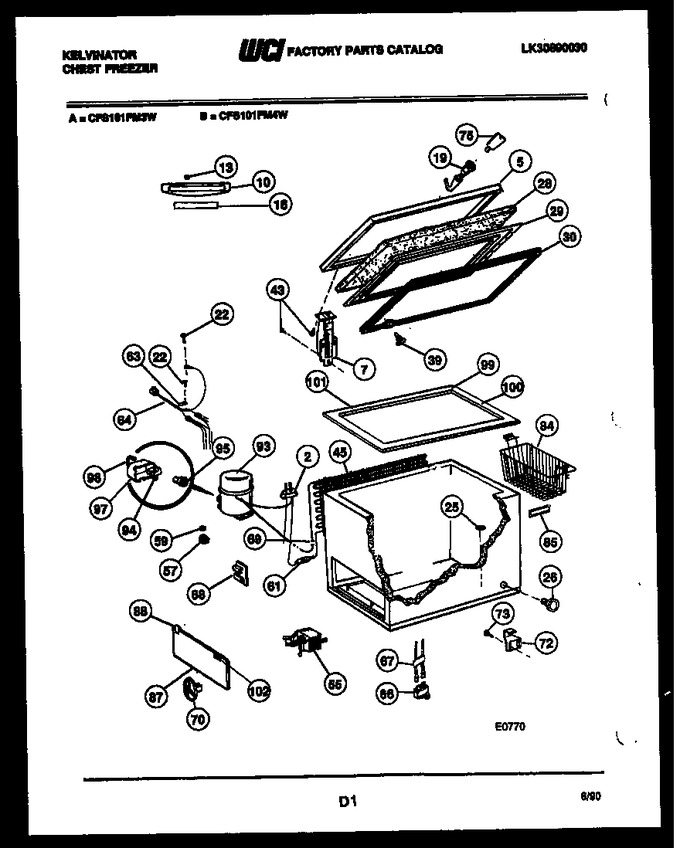

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 06599967 | Grommet |
|
- | |||||
| 5 | 5300129605 | Lid-exterior (white) |
|
$ 149.57 | |||||
| 7 | 5300129936 | Hinge |
|
- | |||||
| 10 | 5309948646 | Handle |
|
- | |||||
| 13 | 09950601 | Fastener Handle |
|
- | |||||
| 16 | 5300128894 | Insert |
|
- | |||||
| 19 | 5306599954 | Lock-complete |
|
- | |||||
| 22 | 08037851 | Screw |
|
$ 3.57 | |||||
| 25 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 26 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 28 | 5303207456 | Insulation Lid |
|
- | |||||
| 29 | 5303912506 | Panel-inner Lid (white) |
|
- | |||||
| 30 | 5300301164 | Gasket-brown |
|
- | |||||
| 39 | 5303091422 | Clip Panel (22) |
|
- | |||||
| 43 | 5309950602 | Screw |
|
$ 5.30 | |||||
| 45 | 5300120781 | Condenser-external (service Replacement Part Only. Not O |
|
- | |||||
| 53 | 06599553 | Clip, Wires |
|
- | |||||
| 55 | 5308013601 | Cold Control |
|
- | |||||
| 57 | 5308008778 | Grommet-comp Mtg (4) |
|
- | |||||
| 59 | 5309950343 | Clip-comp Mtg (3) |
|
- | |||||
| 61 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 63 | 5303017718 | Clamp Wires To Rail |
|
- | |||||
| 64 | 3018261 | Wiring Harness |
|
- | |||||
| 66 | 5303209295 | Run Capacitor |
|
- | |||||
| 67 | 5303206808 | Harness-run Capacitor |
|
- | |||||
| 68 | 5303208622 | Grounding Clip |
|
- | |||||
| 69 | 5305878546 | Spacer Condenser |
|
$ 7.23 | |||||
| 70 | 5303208626 | Knob Control |
|
- | |||||
| 72 | 5303200693 | Latch Catch |
|
- | |||||
| 73 | 5303161233 | Screw |
|
- | |||||
| 75 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 84 | 5303018277 | Basket |
|
- | |||||
| 85 | 08017012 | Handle Basket |
|
- | |||||
| 87 | 5303208624 | Access Panel |
|
- | |||||
| 88 | 5309950877 | Retainer Access Panel (4) |
|
- | |||||
| 93 | 5300186041 | Compressor |
|
- | |||||
| 94 | 5303209289 | Relay |
|
- | |||||
| 95 | 5303209290 | Overload |
|
- | |||||
| 96 | 5303209294 | Clip-overload |
|
- | |||||
| 97 | 5303209292 | Cover-terminal |
|
- | |||||
| 98 | 5303209293 | Clamp Cover |
|
- | |||||
| 99 | 3018271 | Breaker-corner |
|
- | |||||
| 100 | 3018274 | Breaker-end |
|
- | |||||
| 101 | 3018322 | Breaker-front & Rear |
|
- | |||||
| 102 | 5303208663 | Plug-indicator |
|
- |
