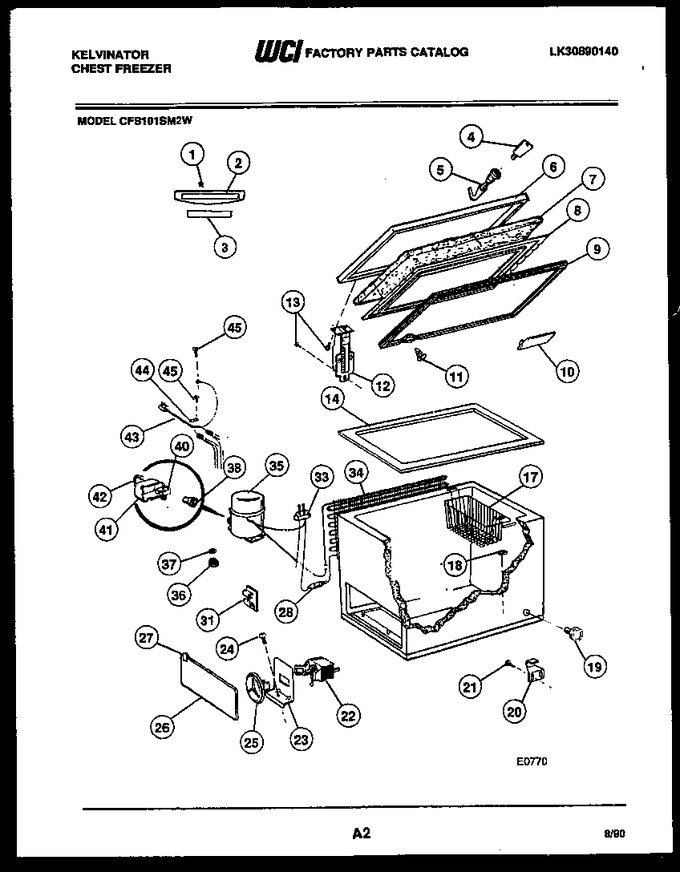

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5309948647 | Fastener (2) |
|
- | |||||
| 2 | 5300121006 | Handle |
|
- | |||||
| 3 | K1243972 | Insert |
|
- | |||||
| 4 | 297147700 | Key (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 5 | 5306599954 | Lock-complete |
|
- | |||||
| 6 | 5300129605 | Lid Panel (white Text) |
|
$ 149.57 | |||||
| 7 | 5303007739 | Insulation Lid |
|
- | |||||
| 8 | 5303912506 | Inner Panel |
|
- | |||||
| 9 | 5300301163 | Gasket (almond) |
|
- | |||||
| 10 | F123668 | Escutcheon |
|
- | |||||
| 11 | 5303091422 | Clip (22) |
|
- | |||||
| 12 | 5309948660 | Hinge |
|
- | |||||
| 13 | 5309950602 | Screw (10) |
|
$ 5.30 | |||||
| 14 | 5300117603 | Collar |
|
- | |||||
| 17 | 5309948669 | Basket |
|
- | |||||
| 20 | 06599933 | Latch |
|
- | |||||
| 21 | 5303161233 | Screw |
|
- | |||||
| 22 | 5308013601 | Control Temperature |
|
- | |||||
| 23 | 5300114180 | Bracket |
|
- | |||||
| 24 | 08037851 | Screw |
|
$ 3.57 | |||||
| 25 | 5308011881 | Knob |
|
- | |||||
| 26 | F0121166-4 | Access Panel |
|
- | |||||
| 27 | 5309950877 | Retainer (4) |
|
- | |||||
| 28 | 5303305677 | Drier (Replaces: 5300152474) |
|
Immediately | $ 31.67 | ||||
| 31 | 06599553 | Clip, Wires |
|
- | |||||
| 33 | 06599967 | Grommet |
|
- | |||||
| 34 | 5300120781 | Condenser (not Original Equipment. Service Replacement O |
|
- | |||||
| 35 | F129985 | Compressor |
|
- | |||||
| 36 | 5308008778 | Grommet |
|
- | |||||
| 37 | 5309950343 | Clip (3) |
|
- | |||||
| 38 | 5300187467 | Overload |
|
- | |||||
| 40 | 5303017583 | Relay |
|
- | |||||
| 41 | 08016583 | Cover |
|
- | |||||
| 42 | 08016584 | Clamp |
|
- | |||||
| 43 | 3018261 | Harness & Power Cord |
|
- |
