Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12002901 Flue Duct Weld Appelez-nous -
2 WP13091701 Rectifier   (Replaces: B8383102) Special Order $ 31.71

3 M0571001 Snap Bushing Appelez-nous -
4 A4055406 Strap, Capacitor Appelez-nous -
5 D8547936 Capacitor Appelez-nous -
6 12018101 Duct-mag/wvgd Appelez-nous -
7 12559101Q Board,hv Amana Program Appelez-nous -
8 12360506 Switch, Interlock Appelez-nous -
9 10853102 Grille, Air Inlet Appelez-nous -
10 12523201Q Assy, Rack Guide Appelez-nous -
10 12487402 Rack, Oven Appelez-nous -
11 M0274066 Washer, Nylon Appelez-nous -
12 M0209701 Screw, Decorative Appelez-nous -
13 M0216517 Screw Appelez-nous -
14 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

15 M0231717 Screw, Tf Appelez-nous -
16 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

17 M0275408 Sealer, Rtv 10.3 Oz-red-ov Cav Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

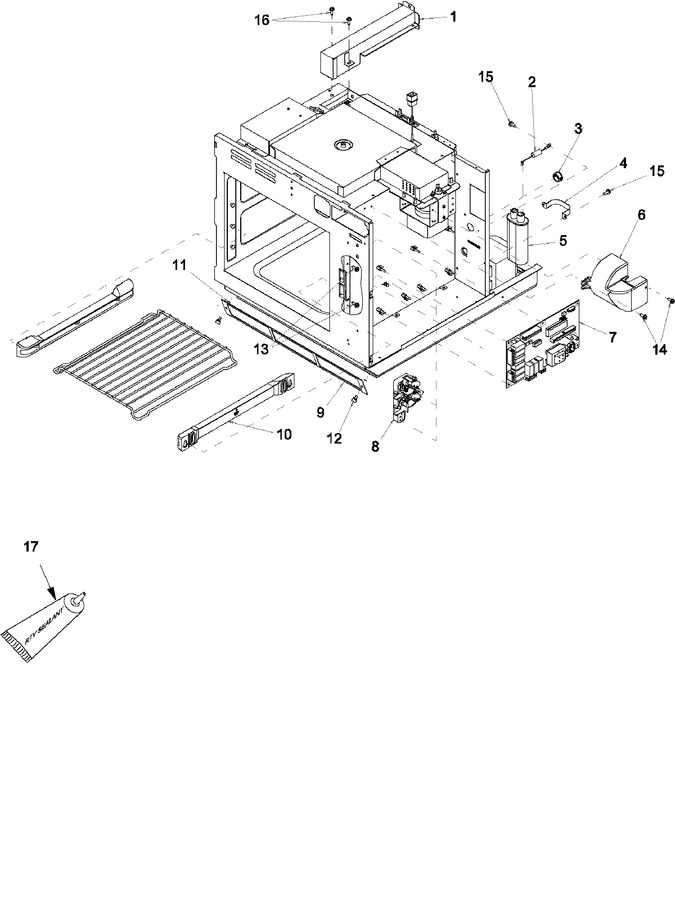

Diagram for ACE208 (BOM: P1324410M)
