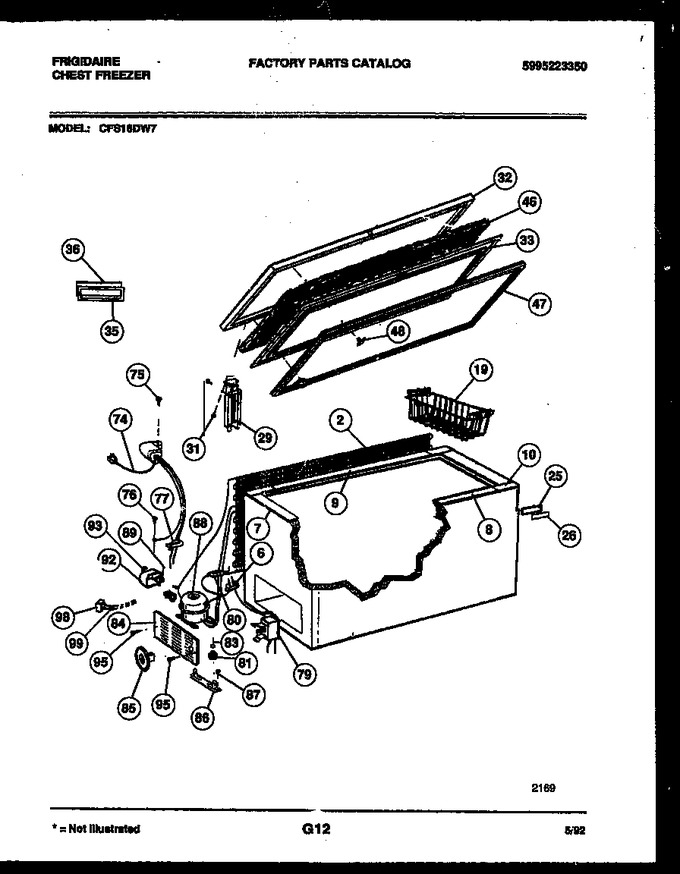

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303280307 | External Condenser-(service Replacement Part Only. Not |
|
$ 640.71 | |||||
| 6 | 06599967 | Grommet |
|
- | |||||
| 7 | 5303207301 | Breaker Ends |
|
- | |||||
| 8 | 5303925045 | Breaker Front |
|
- | |||||
| 9 | 5303925045 | Breaker Rear |
|
- | |||||
| 10 | 5303207302 | Breaker Corners |
|
- | |||||
| 19 | 5303204811 | Basket |
|
- | |||||
| 25 | 08037409 | Bezel Nameplate |
|
- | |||||
| 26 | 08037949 | Insert Nameplate |
|
- | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 31 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 32 | 08017010 | Lid Exterior-white |
|
- | |||||
| 33 | 08017011 | Panel Inner Lid-almond |
|
- | |||||
| 35 | 08037955 | Handle Recessed |
|
- | |||||
| 36 | 08009392 | Gasket Handle |
|
- | |||||
| 46 | 08016778 | Insulation-lid |
|
- | |||||
| 47 | 3017645 | Gasket Lid-white |
|
- | |||||
| 48 | 5303212828 | Clip-panel (40) |
|
$ 16.63 | |||||
| 74 | 5303212629 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 79 | 5304496560 | Cold Control (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet Compressor |
|
- | |||||
| 83 | 216056400 | Clip Compressor |
|
- | |||||
| 84 | 216034301 | Access Panel |
|
$ 103.01 | |||||
| 85 | 216034508 | Control Knob |
|
- | |||||
| 86 | 5303212615 | Support, Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916022 | Compressor |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5308037789 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 3017761 | Run Capacitor |
|
- | |||||
| 99 | 5303280303 | Harness Capacitor |
|
- | |||||
| 26A | 5315340760 | Tape Nameplate (non-illustrated) |
|
- |
