01 - Cover

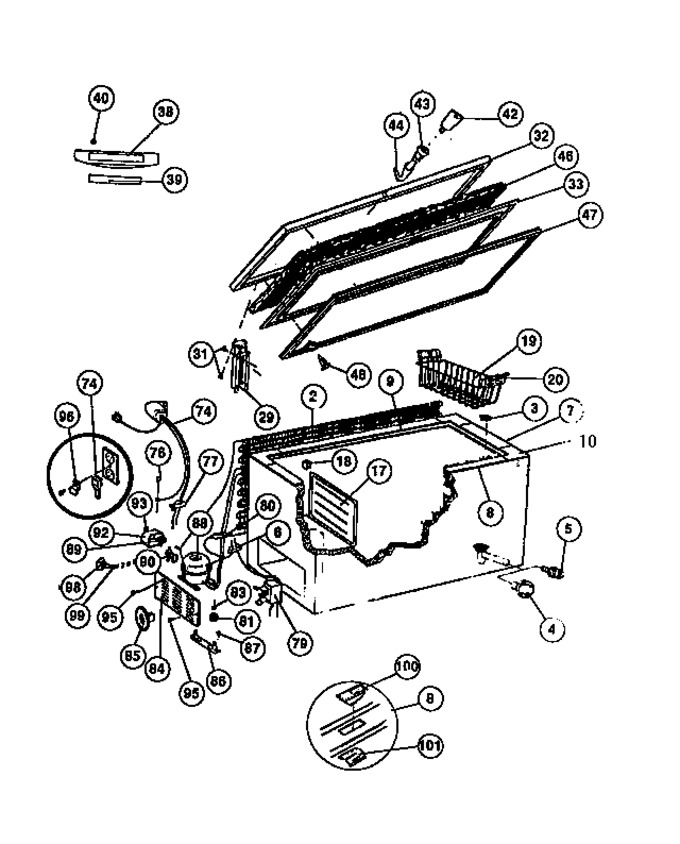

02 - Door, Cabinet, & Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300300171 | External Condenser ( Not Original Equipment. Service Re |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5306599932 | Plug Drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet-control Tube |
|
- | |||||
| 7 | 5303211221 | Breaker Ends |
|
- | |||||
| 8 | 5303925085 | Breaker Front |
|
- | |||||
| 9 | 5303925085 | Breaker Rear |
|
- | |||||
| 10 | 5303211222 | Breaker Corner |
|
- | |||||
| 17 | 216034600 | Divider-drain Pan |
|
- | |||||
| 18 | 5306594584 | Supports Divider |
|
$ 19.80 | |||||
| 19 | 5308016768 | Basket |
|
- | |||||
| 20 | 5308016799 | Handle Basket-yellow |
|
- | |||||
| 29 | 5303925007 | Hinge |
|
- | |||||
| 31 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 32 | 216032101 | Lid Exterior-almond |
|
- | |||||
| 33 | 3091428 | Panel Inner Lid, Almond |
|
- | |||||
| 38 | 5309950054 | Handle |
|
- | |||||
| 39 | 08013602 | Insert Handle |
|
- | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock Cylinder |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 5303091429 | Gasket Lid Brown |
|
- | |||||
| 48 | 5303212828 | Clip Panel (42) |
|
$ 16.63 | |||||
| 74 | 5303212629 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 79 | 5304496560 | Cold Control (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet Compressor |
|
- | |||||
| 83 | 216056400 | Clip Compressor |
|
- | |||||
| 84 | 216022701 | Access Panel |
|
- | |||||
| 85 | 216034509 | Control Knob |
|
- | |||||
| 86 | 5303212615 | Support, Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916022 | Compressor |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5308037789 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 96 | F128958 | Power Cord Retainer |
|
- | |||||
| 98 | 5303916391 | Run Capacitor |
|
- | |||||
| 99 | 5303280303 | Harness Capacitor |
|
- | |||||
| 100 | 5303211223 | Latch Catch |
|
- | |||||
| 101 | 5303208481 | Latch Catch Support |
|
- |
