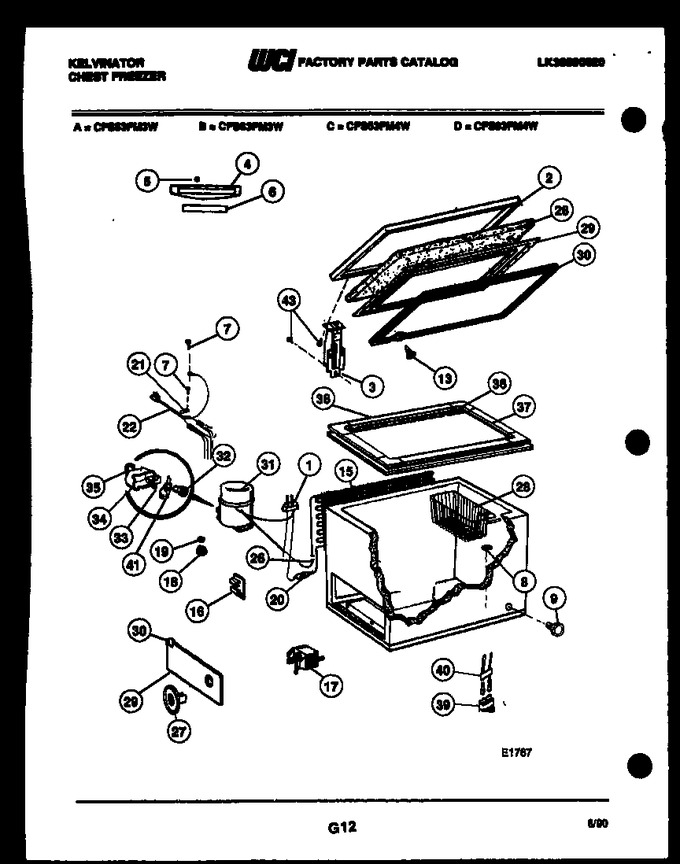

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F81376 | Grommet |
|
- | |||||
| 2 | F129590 | Lid Panel |
|
- | |||||
| 3 | F129943 | Hinge |
|
- | |||||
| 4 | F114336 | Handle |
|
- | |||||
| 5 | F114337 | Fastener (2) |
|
- | |||||
| 6 | F128894 | Insert |
|
- | |||||
| 7 | F81693 | Screw (3) |
|
- | |||||
| 8 | F89354 | Plug Drain Liner |
|
- | |||||
| 9 | F128045 | Plug Drain Shell |
|
- | |||||
| 10 | F128901 | Insulation |
|
- | |||||
| 11 | F114158-0464 | Inner Panel |
|
- | |||||
| 12 | F301160 | Gasket |
|
- | |||||
| 13 | F300792 | Clip (20) |
|
- | |||||
| 14 | F119436 | Screw (10) |
|
- | |||||
| 15 | F120780 | Condenser (note Original Equipment. Service Replacement |
|
- | |||||
| 16 | F111846 | Clip |
|
- | |||||
| 17 | F126969 | Control Temperature |
|
- | |||||
| 18 | F114221 | Grommet (4) |
|
- | |||||
| 19 | F118834 | Clip (3) |
|
- | |||||
| 20 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 21 | F116027 | Clamp |
|
- | |||||
| 22 | 3018261 | Wiring Harness |
|
- | |||||
| 26 | F82585 | Spacer Condenser |
|
- | |||||
| 27 | F127649 | Knob |
|
- | |||||
| 28 | 5303018277 | Basket |
|
- | |||||
| 29 | 5303208624 | Access Panel |
|
- | |||||
| 30 | F300221 | Retainer (4) |
|
- | |||||
| 31 | 5300186041 | Compressor |
|
- | |||||
| 32 | 5303017753 | Relay |
|
- | |||||
| 33 | 5303206885 | Overload |
|
$ 119.23 | |||||
| 34 | 5303206815 | Cover |
|
- | |||||
| 36 | 3018271 | Breaker-corner (4) |
|
- | |||||
| 37 | 3018274 | Breaker-end (2) |
|
- | |||||
| 38 | 3018321 | Breaker-front & Rear |
|
- | |||||
| 39 | 3017761 | Capacitor Run |
|
- | |||||
| 40 | 5303206808 | Harness Capacitor |
|
- |
