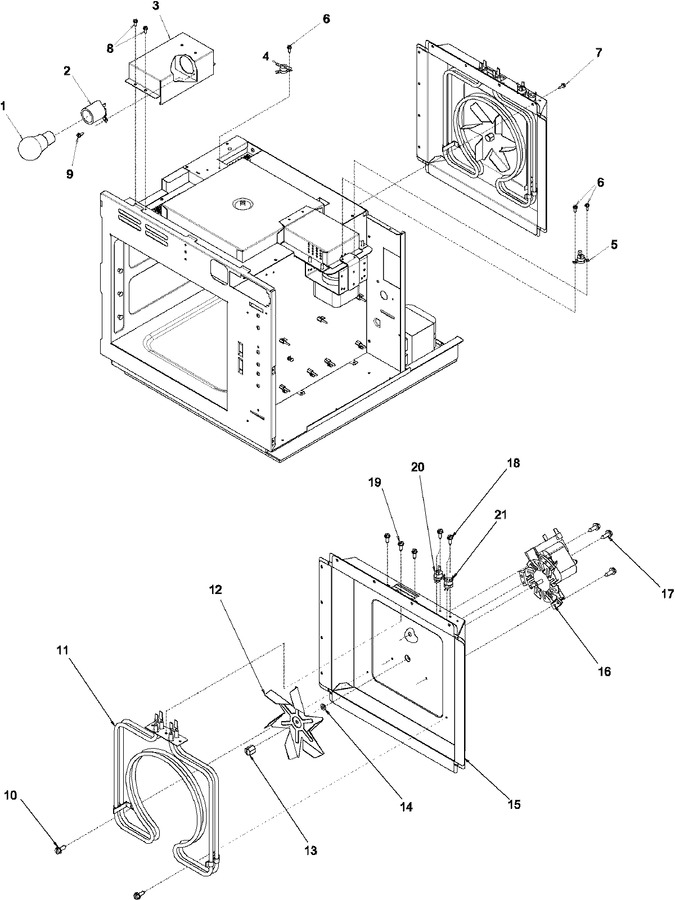

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67002552 | Bulb, Light (40w-250v) (Replaces: 67002552) |
|
Immediately | $ 10.58 | ||||
| 2 | 12027401 | Receptacle-lamp |
|
- | |||||
| 3 | 12630501 | Cover,lamp |
|
- | |||||
| 4 | B5684102 | Thermal Protector |
|
- | |||||
| 5 | B5684119 | Cutout-thermal |
|
- | |||||
| 6 | M0232012 | Screw |
|
- | |||||
| 7 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.26 | ||||
| 8 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 9 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 10 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| 11 | 12000105 | Assy, Heater |
|
- | |||||
| 12 | 12537901 | Blade, Fan |
|
$ 12.61 | |||||
| 13 | 12538001 | Nut,cap |
|
- | |||||
| 14 | 12546101 | Washer |
|
- | |||||
| 15 | 59001513 | Heater Box |
|
- | |||||
| 16 | 12537801 | Motor, Convection |
|
- | |||||
| 17 | M0229616 | Screw,sm |
|
- | |||||
| 18 | M0232012 | Screw |
|
- | |||||
| 19 | M0223328 | Screw |
|
- | |||||
| 20 | 31866P01 | M4d69 Protector |
|
$ 8.67 | |||||
| 21 | A3204901 | Thermal Compound K |
|
- |
