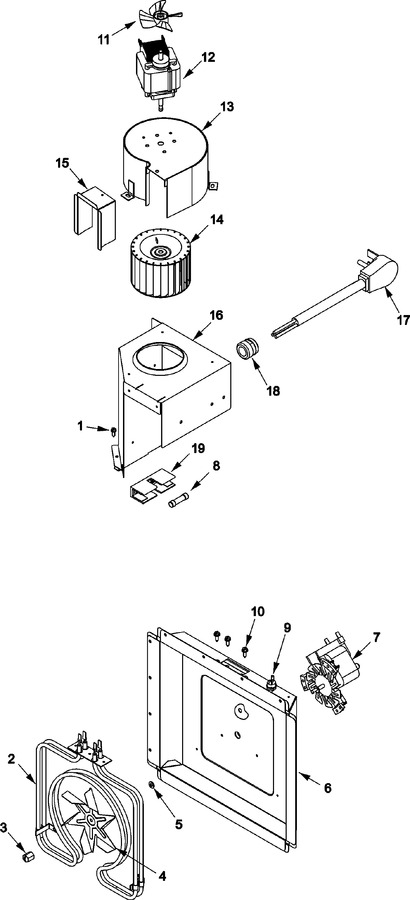

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
2	WP488234		Screw   (Replaces: M0234422)				$ 6.07
2	12000105		Assy, Heater		Appelez-nous	-
3	12538001		Nut,cap		Appelez-nous	-
4	12537901		Blade, Fan				$ 12.61
5	12546101		Washer		Appelez-nous	-
6	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.26
6	59001513		Heater Box		Appelez-nous	-
7	M0229616		Screw,sm		Appelez-nous	-
7	12537801		Motor, Convection		Appelez-nous	-
8	M0805205		Fuse- 30a				$ 10.08
9	31866P01		M4d69 Protector				$ 8.67
9	M0232012		Screw		Appelez-nous	-
10	M0223328		Screw		Appelez-nous	-
11	B5706704		Fan Blade				$ 8.23
12	M0253916		Screw		Appelez-nous	-
12	10773306		Motor- Blower		Appelez-nous	-
13	10797203		Scroll Weld		Appelez-nous	-
13	59001208		Screw, Hex Head		Appelez-nous	-
14	C3670809		Wheel, Blower				$ 33.54
15	10977801		Transition-blower		Appelez-nous	-
15	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
16	12000810		Weld,blower Brkt		Appelez-nous	-
16	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
17	R0131016		Power Cord Kit		Appelez-nous	-
18	M0370003		Strain Relief		Appelez-nous	-
19	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
19	10091101		Fuse Holder		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
