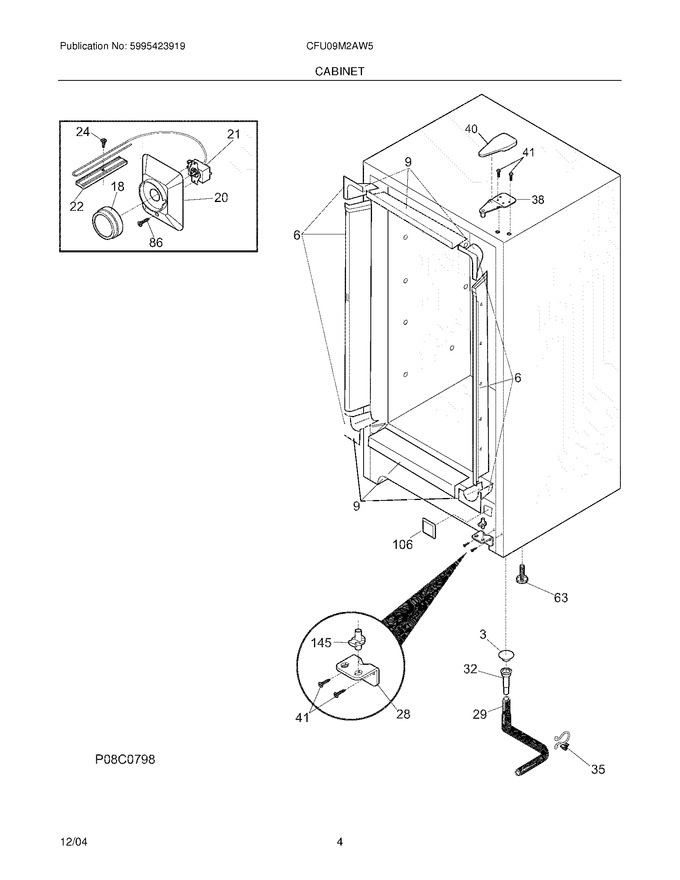

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
6	216604500		Breaker,hinge Side				$ 69.05
9	216603500		Breaker,top		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
20	216707300		Cover-control Housing		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp,door Closer				$ 8.82
27	154518001		Screw,door Stop ,10 (a) X 0.875 ,btm   (Replaces: 5303205738)				$ 10.54
28	216929000		Hinge,bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313503)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Drain Hose				$ 22.42
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	216954400		Screw,12-24 X.700 Hwh ,hinge Mtg.		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
106	216926301		Plug,square		Appelez-nous	-
145	216929200		Pin,hinge ,closer				$ 7.66
F21	216834500		Control-temperature				$ 24.31
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216794704		Energy Guide		Appelez-nous	-
