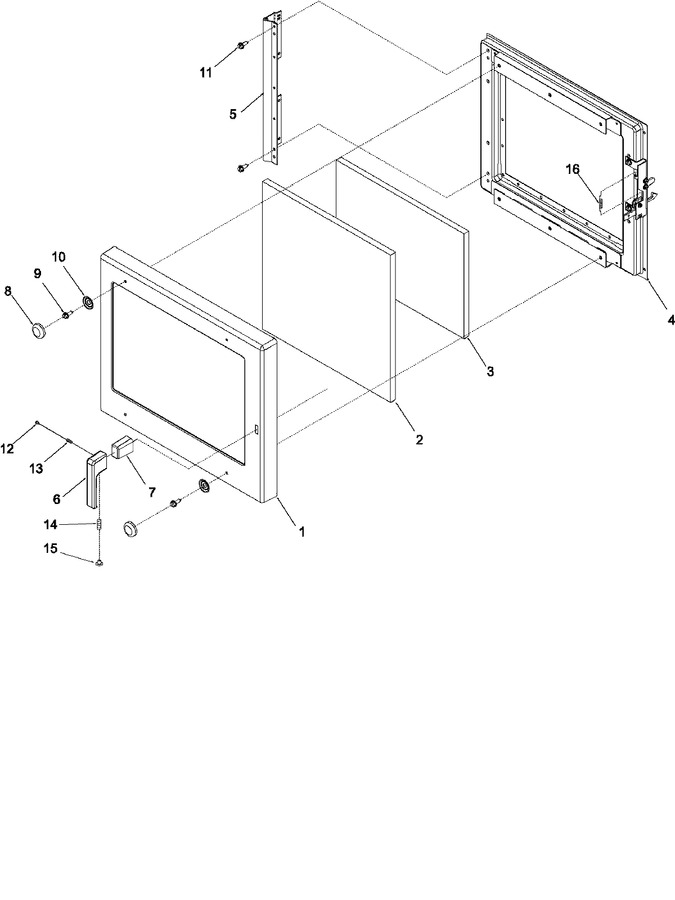

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 59001511 | Door-outer |
|
- | |||||
| 2 | 12474902 | Insulation, Door-large |
|
- | |||||
| 3 | 12474901 | Insulation, Door-small |
|
- | |||||
| 4 | R0000498 | Kit-inner Door W\caps & Choke |
|
- | |||||
| 5 | 59001869 | Hinge- Door |
|
- | |||||
| 6 | 12490902 | Door Handle |
|
- | |||||
| 7 | 12576901 | Insert,handle |
|
- | |||||
| 8 | M0295501 | Cap, Screw |
|
- | |||||
| 9 | 5145-E | No.8 Ab X 1/2`` Crow Foot Hd Scr |
|
- | |||||
| 10 | M0295502 | Washer, Cap Screw |
|
- | |||||
| 11 | WP12990527 | Screw (Replaces: M0229716) |
|
Immediately | $ 7.15 | ||||
| 12 | 12360703 | Plug, Button (blk) |
|
- | |||||
| 13 | M0208943 | Set Screw |
|
- | |||||
| 14 | M0206943 | Set Screw |
|
- | |||||
| 15 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 16 | 59001721 | Spring-door Latch |
|
- |
