SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

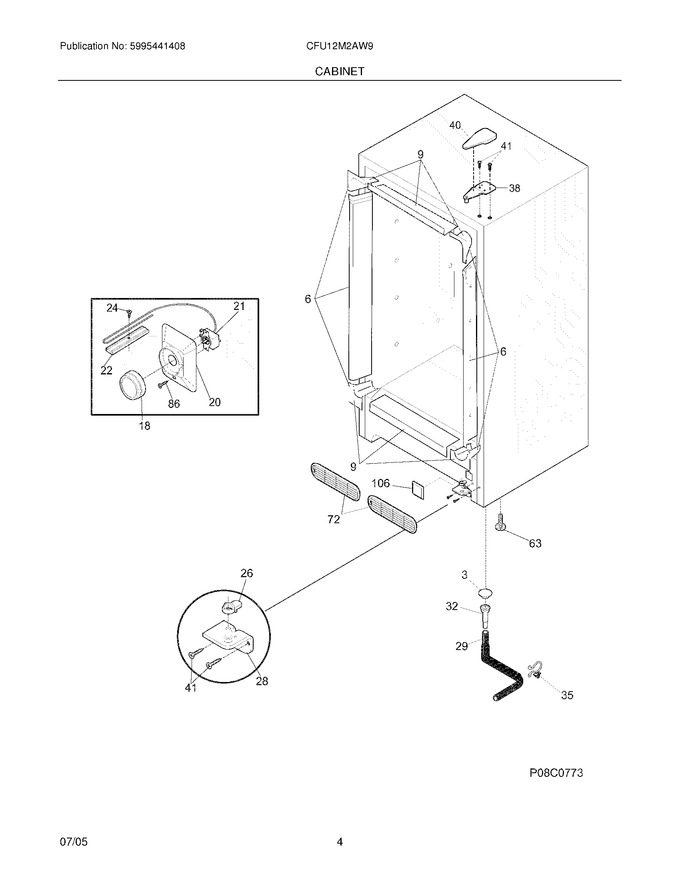

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
6	216604400		Breaker Kit W/corners		Appelez-nous	-
9	216603400		Breaker Kit W/corners,22.13`` Long ,top Or Bottom		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
20	297013800		Cover-control Housing				$ 80.43
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp,door Closer				$ 8.82
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Drain Hose				$ 22.42
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	216936800		Screw-hinge,12-24x.700 Hwh		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	216952700		Grille/guard,(2)				$ 26.80
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
106	216926301		Plug,square		Appelez-nous	-
F21	297216004		Control-temperature   (Replaces: 216788100)			Immediately	$ 53.52
NI	216794806		Energy Guide		Appelez-nous	-
NI	297001701		Insulation,drain Tube ,24``		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
