Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10098907 Power Cord Appelez-nous -
2 B5706704 Fan Blade Special Order $ 8.23

3 M0370003 Strain Relief Appelez-nous -
4 10773307 Motor- Blower Appelez-nous -
5 12000810 Weld,blower Brkt Appelez-nous -
6 10977801 Transition-blower Appelez-nous -
7 10091101 Fuse Holder Appelez-nous -
8 10797203 Scroll Weld Appelez-nous -
9 M0805205 Fuse- 30a Special Order $ 10.08

10 C3670809 Wheel, Blower Special Order $ 33.54

11 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

12 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

13 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

14 M0253916 Screw Appelez-nous -
15 M0231717 Screw, Tf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

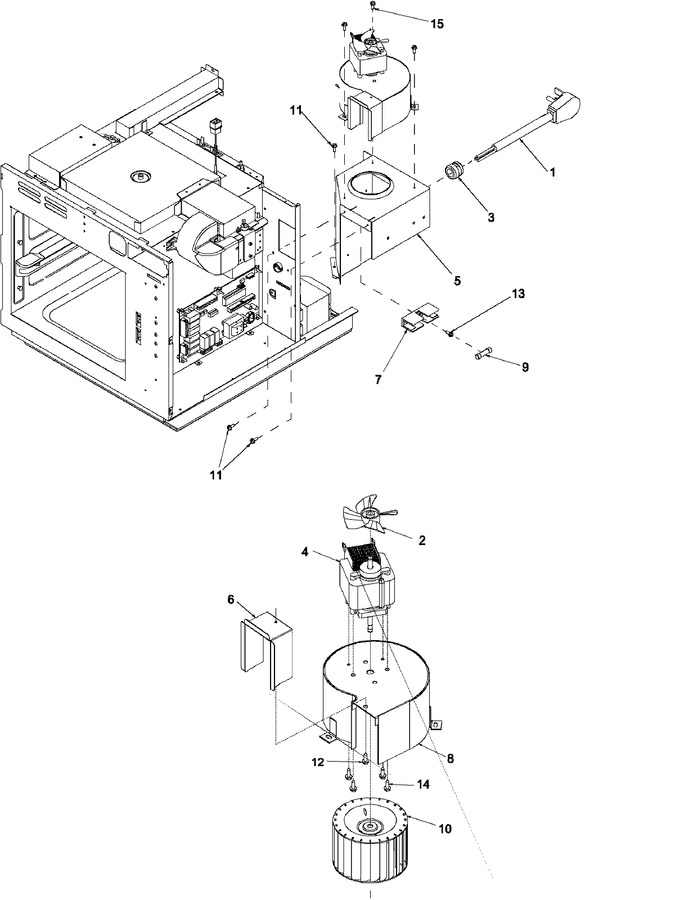

Diagram for ACE2302 (BOM: P1331305M)
