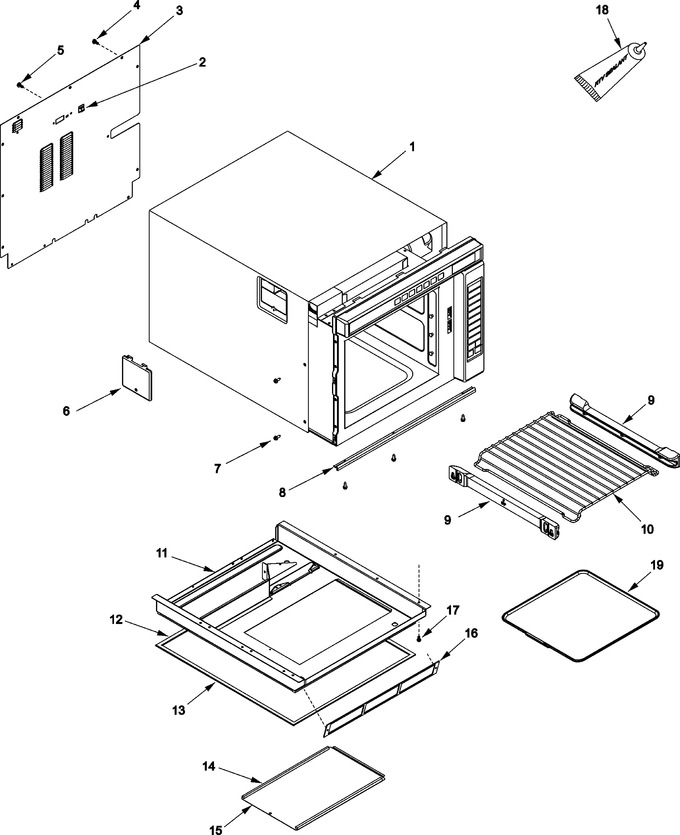

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	10908901Q		Wrapper-oc (ss)		Appelez-nous	-
002	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
003	12002804		Access Pan Weld (blk)		Appelez-nous	-
004	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
005	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
006	10785608		Cover Light (ss)		Appelez-nous	-
006	M0215116		Screw		Appelez-nous	-
006	M0249619		Screw, T F		Appelez-nous	-
006	NLA		Clip		Appelez-nous	-
007	M0249619		Screw, T F		Appelez-nous	-
008	M0232002		Screw, T F		Appelez-nous	-
008	NLA		Trim-oc (brushed)		Appelez-nous	-
009	12523201Q		Assy, Rack Guide		Appelez-nous	-
010	12487402		Rack, Oven		Appelez-nous	-
011	R0150116		Assy, Base Pan & Gaskets		Appelez-nous	-
012	59001646		Basepan Gasket-cut		Appelez-nous	-
013	59001647		Basepan Gasket-cut		Appelez-nous	-
014	A3030301		Gasket (inch)		Appelez-nous	-
015	10782402		Bottom Access Panel		Appelez-nous	-
015	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
016	10853102		Grille, Air Inlet		Appelez-nous	-
016	M0209701		Screw, Decorative		Appelez-nous	-
016	M0274066		Washer, Nylon		Appelez-nous	-
017	WP489128		Screw   (Replaces: M0220417)				$ 9.79
018	59001950		Sealer,rtv 2.8 Oz-red-hi-temp		Appelez-nous	-
019	59001942		Grease Tray Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
