SELECT A DIAGRAM

01 - Base & Heater Box


02 - Blower


03 - Control


04 - Heat Box


05 - Miscellaeous Information


06 - Outercase & Electrical


07 - Rear Panel & Door


08 - Stirrer System & Outer Cavity

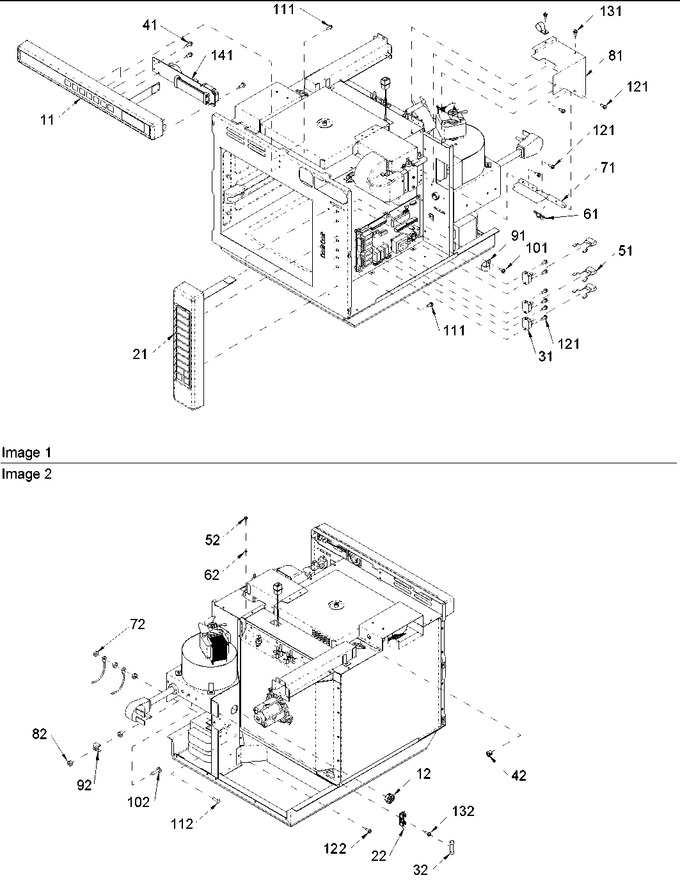

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	R0000280		Assy, Touch Panel-top		Appelez-nous	-
12	M0571003		Bushing-snap		Appelez-nous	-
21	R0000279		Assy, Touch Panel-side		Appelez-nous	-
22	12136503		Block-1 Pole Fuse				$ 5.70
31	D7681501		Triac				$ 44.05
32	WPM0805102		Fuse 15 Amp   (Replaces: M0805102)				$ 21.25
41	M0234114		Screw		Appelez-nous	-
42	A3293501		Bushing		Appelez-nous	-
51	10172901Q		Snubber Assembly		Appelez-nous	-
52	M0234114		Screw		Appelez-nous	-
61	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
62	M0272503		Washer		Appelez-nous	-
71	10978601		Duct-blower/mag		Appelez-nous	-
72	M0282005		Nut K				$ 7.07
81	10978702		Cover-mag Inlet		Appelez-nous	-
82	M0282021		Nut-keps		Appelez-nous	-
91	M0102305		Clamp, Tube		Appelez-nous	-
92	12152201		Washer-u Type		Appelez-nous	-
101	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
102	M0293507		Stud- Sc		Appelez-nous	-
111	M0231717		Screw, Tf		Appelez-nous	-
112	M0293502		Stud-self Clinch		Appelez-nous	-
121	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
122	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
131	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
132	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
141	12502401		Board,display Xxx		Appelez-nous	-
NI	12537702		Harness-triacs & Rtd Wires		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
