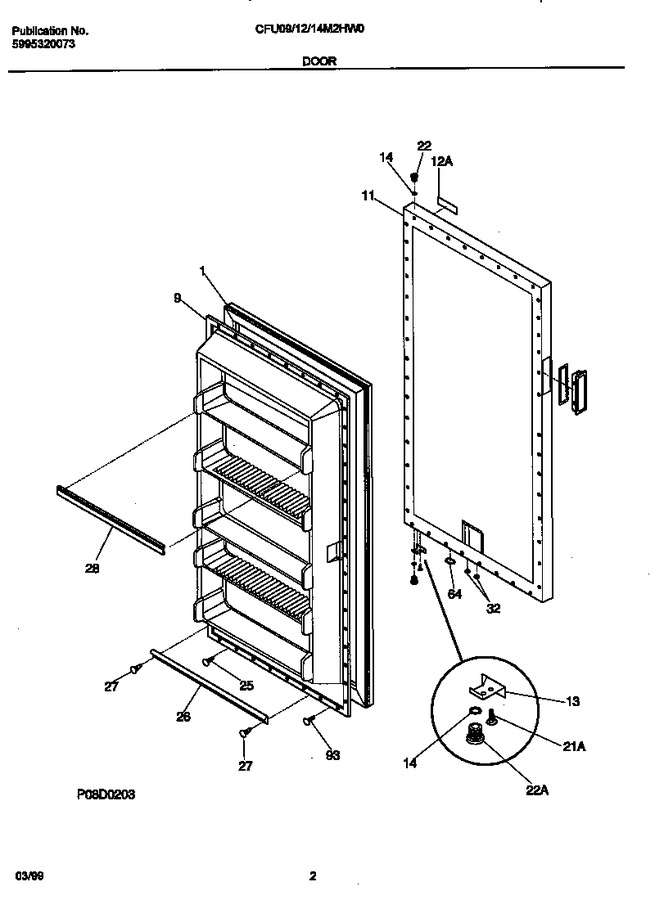

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507201 | Gasket-door,white (Replaces: 216522306) |
|
Immediately | $ 185.36 | ||||
| 9 | 216527612 | Panel-inner Door,white ,frzr |
|
- | |||||
| 11 | 216557800 | Panel-outer Door,white |
|
- | |||||
| 12 | 216373000 | Frame-nameplate |
|
$ 4.04 | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 21 | 08005520 | Screw-door Stop |
|
- | |||||
| 22 | 297006800 | Bearing-hinge, Btm (Replaces: 216503200) |
|
$ 12.29 | |||||
| 22 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 26 | 216524300 | Gasket,secondary |
|
$ 27.56 | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 28 | 216523300 | Rack-shelf,wide |
|
- | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 64 | 216403700 | Plug-button, Base Door |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 |
