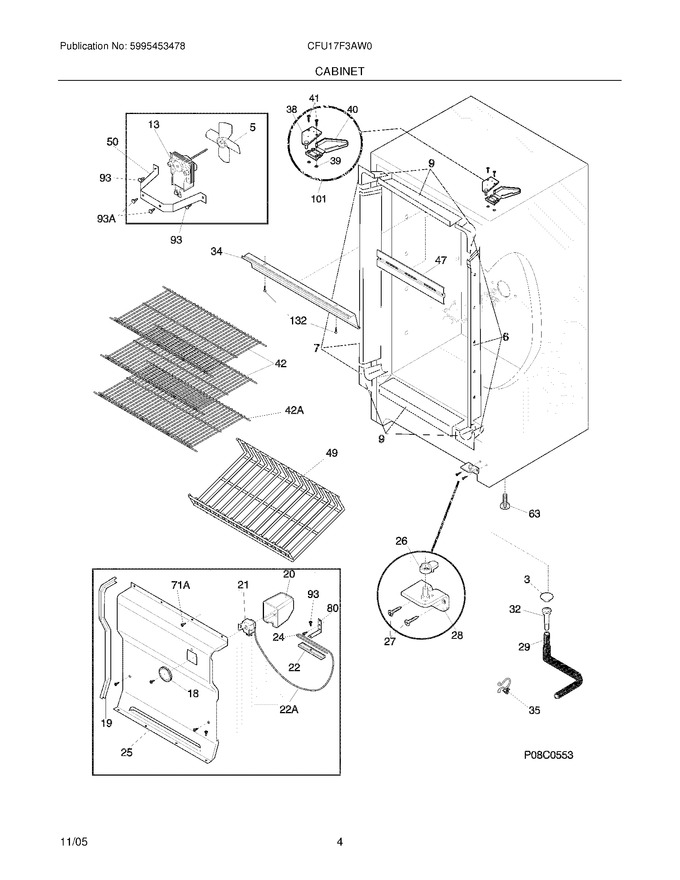

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604200		Breaker Kit W/corners				$ 227.12
7	216603700		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
13	5304442620		Motor-fan   (Replaces: 216690400)				$ 282.51
18	216707200		Knob,temp Control				$ 44.10
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
21	5304513033		Control- Temperature   (Replaces: 216715200)			Immediately	$ 83.14
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216737100		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
27	154518001		Screw,door Stop ,10 (a) X 0.875 ,btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816203		Shield-light		Appelez-nous	-
35	216629700		Clip		Appelez-nous	-
38	216808900		Hinge,plate ,top				$ 92.87
39	5303294372		Nut-insert,1/4-20 Unc ,hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	241710601		Screw-hinge Mtg,hex Hd ,1/4-20 X 0.875   (Replaces: 5303001479)				$ 13.46
42	216458400		Shelf,14.50x27.88 ,(3)		Appelez-nous	-
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
49	216278900		Trivet				$ 183.65
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
101	216835200		Top Hinge Kit				$ 50.99
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
42A	216458200		Shelf,12.50x27.88 ,white		Appelez-nous	-
71A	216036601		Screw,quadrex ,8-32 X 0.300 ,grounding   (Replaces: 216347500)				$ 13.65
93A	5303302760		Screw,round Head Sems ,10-32 X 0.375				$ 8.72
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216795404		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
