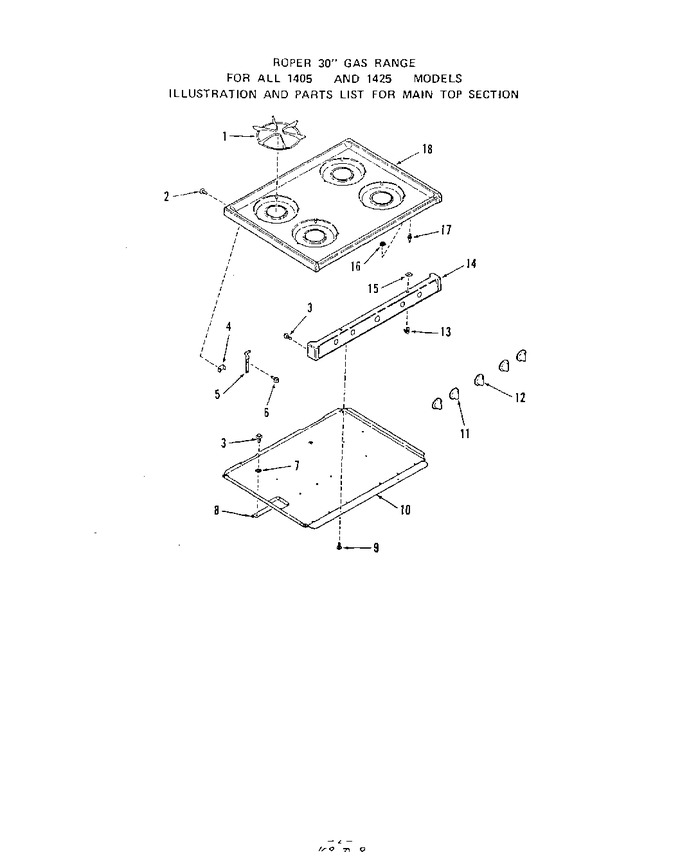

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Grate-top		Appelez-nous	-
2	316849		Screw-10-32x1/2``		Appelez-nous	-
3	327320		Screw 10-16x7/16``		Appelez-nous	-
4	327403		Bracket-hinge (lt. Or Rt.)		Appelez-nous	-
5	320921		Hinge-main Top (right)		Appelez-nous	-
5	320922		Hinge-main Top (left)		Appelez-nous	-
6	321162		Screw 10-32 X 3/4``		Appelez-nous	-
7	106462		Washer		Appelez-nous	-
8	327705		Stiffener-burner Box Bottom (front)		Appelez-nous	-
8	329158		Stiffener-burner Box Bottom (rear)		Appelez-nous	-
9	239113		Screw 10-32x3/8``		Appelez-nous	-
10	327069		Bottom-burner Box (14050a & 14250a Models)		Appelez-nous	-
10	331576		Bottom-burner Box (14051a, 14052a, 14251a Models)		Appelez-nous	-
11	327484		Knob-gas Valve (4 Req)		Appelez-nous	-
12	322981		Knob-thermostat		Appelez-nous	-
13	24667		Catch (2 Req)		Appelez-nous	-
14	327456		Manifold Panel (golden Wheat)		Appelez-nous	-
14	327451		Panel-manifold (white)		Appelez-nous	-
14	327457		Manifold Panel (almond)		Appelez-nous	-
15	310218		Washer		Appelez-nous	-
16	239764		Nut-keps 8-32		Appelez-nous	-
17	299784		Strike (2 Req)		Appelez-nous	-
18	328910		Top-main (wheat)		Appelez-nous	-
18	328911		Top-main (almond)		Appelez-nous	-
18	328907		Top-main (white)		Appelez-nous	-
