01 - Cabinet


02 - Cavity And Backguard


03 - Maintop And Gas Supply


04 - Oven Door And Storage Drawer

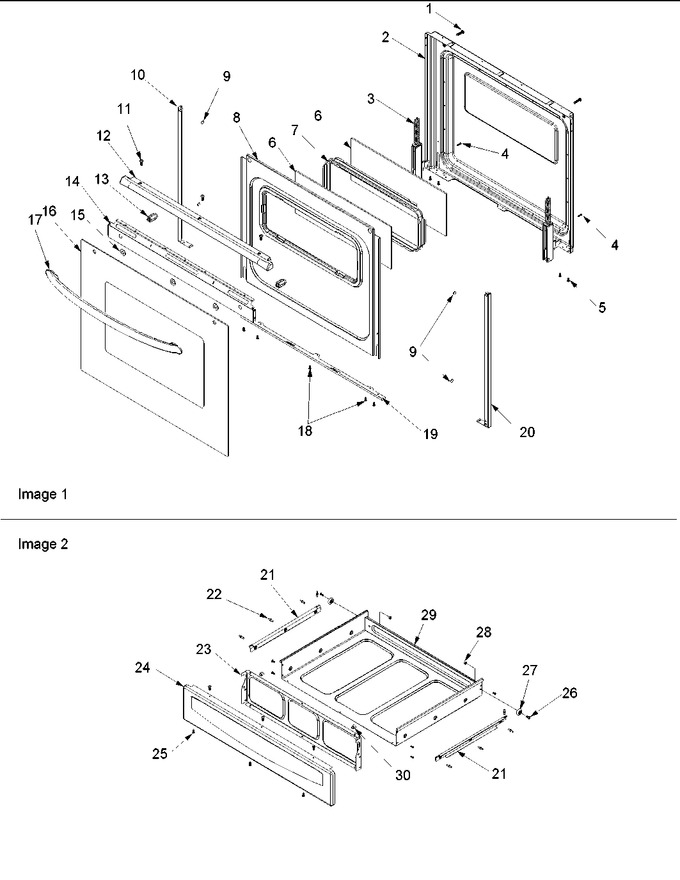

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31750526		Screw, 10-32 X 2.00``		Appelez-nous	-
2	31932203CG		Backer, Oven Door		Appelez-nous	-
3	31946302		Hinge, Oven Door (xxl)		Appelez-nous	-
4	31750528		Screw,10-24 X .375		Appelez-nous	-
5	31750434		Screw, 8-32 X .312 Trhdwh(blk)		Appelez-nous	-
6	31942101		Glass, Window		Appelez-nous	-
7	31941901		Frame, Window Pack		Appelez-nous	-
8	31941401		Shield Backer, Heat (std)		Appelez-nous	-
9	0043184		Tape, Foam		Appelez-nous	-
10	31944507B		Trim, Side Door Lt (blk)		Appelez-nous	-
11	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
12	31946401B		Trim, Top Door (blk)		Appelez-nous	-
13	31947901		Bushing, Door Handle (blk)		Appelez-nous	-
14	31941302B		Shield, Heat Dr Glass		Appelez-nous	-
15	31985001		Cover, Switch Hole		Appelez-nous	-
16	32020401B		Glass, Oven Door (blk)		Appelez-nous	-
17	31689501B		Handle, Oven Door (blk)		Appelez-nous	-
18	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
19	31944603B		Angle, Glass Support (blk)		Appelez-nous	-
20	31944503B		Trim, Side Door Rt (blk)		Appelez-nous	-
21	31733301		Track, Storage Drawer		Appelez-nous	-
22	Y0097822		Rivet, Pop		Appelez-nous	-
23	31942702B		Liner, Storage Drwr-gas (blk)		Appelez-nous	-
24	31937703C		Drawer Panel-gas (bsq)		Appelez-nous	-
25	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
26	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
27	31733401		Roller, Drawer				$ 5.75
28	31750130		Nut, Lock (center) No.10-32 (zn)		Appelez-nous	-
29	31942902W		Wrapper, Storage Drwr-gas(wht)		Appelez-nous	-
30	Y0063661		Bumper, Oven Door		Appelez-nous	-
NI	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
