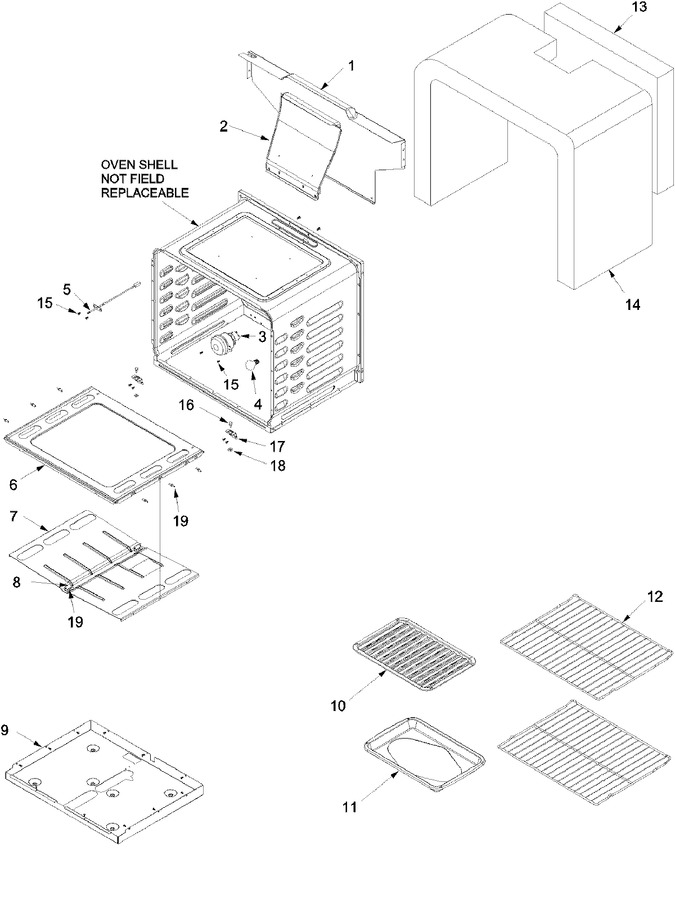

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31986501B		Shield, Backguard (blk)		Appelez-nous	-
2	31941202CG		Assy, Flue (cg)		Appelez-nous	-
3	31823701		Oven Light Assy		Appelez-nous	-
4	Y0042175		Bulb, Light		Appelez-nous	-
5	31954301		Sensor, Temperture				$ 112.39
6	31940802CG		Bottom, Oven (cg)		Appelez-nous	-
7	77001111		Baffle, Oven Burner		Appelez-nous	-
8	77001112		Bracket, Blower Vent		Appelez-nous	-
9	77001113		Bake Chamber		Appelez-nous	-
10	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
11	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
12	32016001J		Rack, Oven-24.080`` X 17.750``		Appelez-nous	-
13	31945601		Insulation, Back (gas)		Appelez-nous	-
14	31945501		Insulation, Wrapper		Appelez-nous	-
15	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
16	31750723		Screw, Oven Bottom		Appelez-nous	-
17	31945401		Brkt, Support-oven Btm		Appelez-nous	-
18	31750129		Nut, Speed		Appelez-nous	-
19	Y0097822		Rivet, Pop		Appelez-nous	-
NI	32030301		Harness, Main (genesis)		Appelez-nous	-
