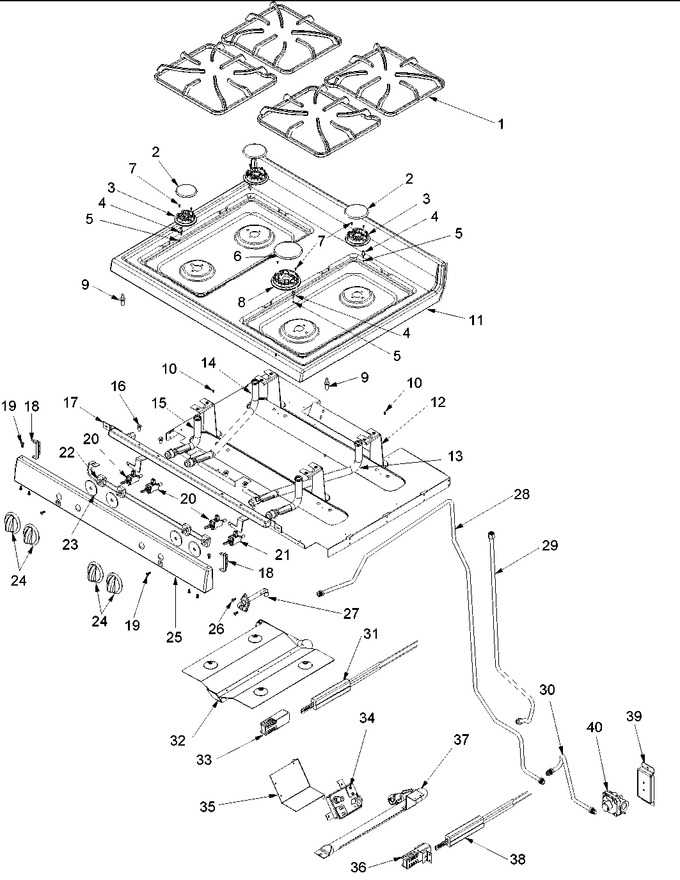

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31972302B		Grate, Wire Burner (blk)		Appelez-nous	-
2	31782601MB		Cap, Burner 9k (matte Blk)		Appelez-nous	-
3	WPY0315768		Top Burner (medium 9k)   (Replaces: Y0315768)				$ 128.48
4	WPY0316773		Electrode, Spark Ignition   (Replaces: Y0316773)			Immediately	$ 37.13
5	Y0316775		Screw, Electrode		Appelez-nous	-
6	31782701MB		Cap, Burner 12/13k (matte Blk)				$ 35.43
7	WPY04100059		Screw, No.6-20 X .750 Pan Hd Ph   (Replaces: 31750320)				$ 6.96
8	Y0315767		Top Burner (large 12/13k)		Appelez-nous	-
9	31750709		Screw, Stud		Appelez-nous	-
10	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
11	31949104W		Maintop, Gas (wht)		Appelez-nous	-
12	31945301		Brkt, Venturi Mtg		Appelez-nous	-
13	31899502		Tube, Venturi-right Rear		Appelez-nous	-
14	31899501		Tube, Venturi-left Rear		Appelez-nous	-
15	31899401		Tube, Venturi-front		Appelez-nous	-
16	31750712		Screw, Valve 2ax .415		Appelez-nous	-
17	31985501		Manifold Pipe		Appelez-nous	-
18	31940401		Mtg Brkt - Manifold Pnl		Appelez-nous	-
19	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
20	31956201		Valve, Gas 140 Deg (9.7k Btu)		Appelez-nous	-
21	31956202		Valve, Gas 140 Deg (12k Btu)		Appelez-nous	-
22	31961901		Harness,spark W/switch-140 Deg		Appelez-nous	-
23	Y0314316		Shield, Switch		Appelez-nous	-
24	31926610B		Knob, Burner-140 Degree (blk)		Appelez-nous	-
25	31936905B		Manifold Panel-screened (blk)		Appelez-nous	-
26	31750527		Screw,10-24 X .312		Appelez-nous	-
27	31946201		Elbow, Orifice-no.54 Hood		Appelez-nous	-
28	31946101		Tubing, Manifold To Regulator		Appelez-nous	-
29	31946001		Tubing, Valve To Broil		Appelez-nous	-
30	31945901		Tubing, Valve To Regulator		Appelez-nous	-
31	WP7432P136-60		Ignitor, Fs Bake/broil   (Replaces: 31991701)			Immediately	$ 84.62
32	31968601		Assy, Broil Burner		Appelez-nous	-
33	31957101		Bracket, Igniter Mounting		Appelez-nous	-
34	31946901		Valve, Gas Safety		Appelez-nous	-
35	31948301		Brkt, Mtg-dual Valve		Appelez-nous	-
36	31957001		W/a Bake Igniter Mtg		Appelez-nous	-
37	31945701		Burner, Bake		Appelez-nous	-
38	WP7432P136-60		Ignitor, Fs Bake/broil   (Replaces: 31991701)			Immediately	$ 84.62
39	31948201		Brkt, Mtg-pressure Regulator		Appelez-nous	-
40	31947001		Regulator, Pressure		Appelez-nous	-
