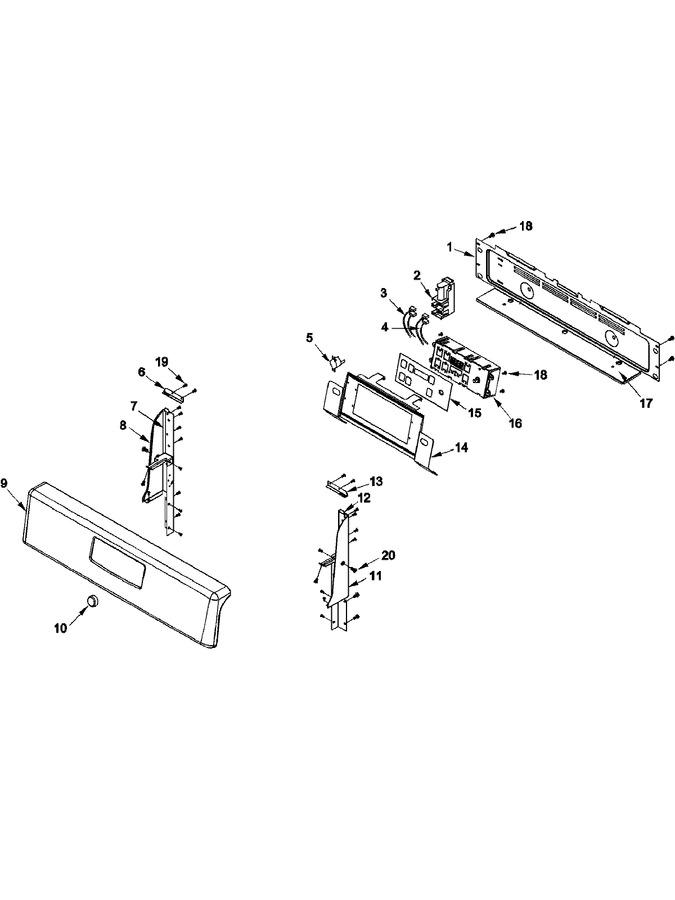

SELECT A DIAGRAM

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Maintop And Gas Supply


05 - Oven Door


06 - Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31954401		Cover, Upper Rear		Appelez-nous	-
2	31962701		Spark Module				$ 139.34
3	32012001		Wire Harness, Ignition-34/28``		Appelez-nous	-
4	32014101		Wire Harness, Ignitor-35/31``		Appelez-nous	-
5	32012701		Control, Limit		Appelez-nous	-
6	32030702		Mtg Bracket, Backguard Lt		Appelez-nous	-
7	32030601		Brkt, Bkgd Pivot Mtg-rt		Appelez-nous	-
8	31937602B		Support, Backguard (blk) Lt		Appelez-nous	-
9	31943515B		Panel, Bkgd-screened (blk)		Appelez-nous	-
10	32031303W		Knob, Clock (wht)		Appelez-nous	-
11	31937608W		Support, Backguard (wht) Rt		Appelez-nous	-
12	32030602		Brkt, Bkgd Pivot Mtg-lt		Appelez-nous	-
13	32030701		Mtg Bracket, Backguard Rt		Appelez-nous	-
14	31937401		Brkt, Clock (genesis)		Appelez-nous	-
15	32025903W		Panel, Membrane Switch (wht)		Appelez-nous	-
16	31924402		Erc, Genesis (gas)		Appelez-nous	-
17	32000801		Insulation, Backguard		Appelez-nous	-
18	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
19	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
20	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
