SELECT A DIAGRAM

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Maintop And Gas Supply


05 - Oven Door


06 - Storage Drawer

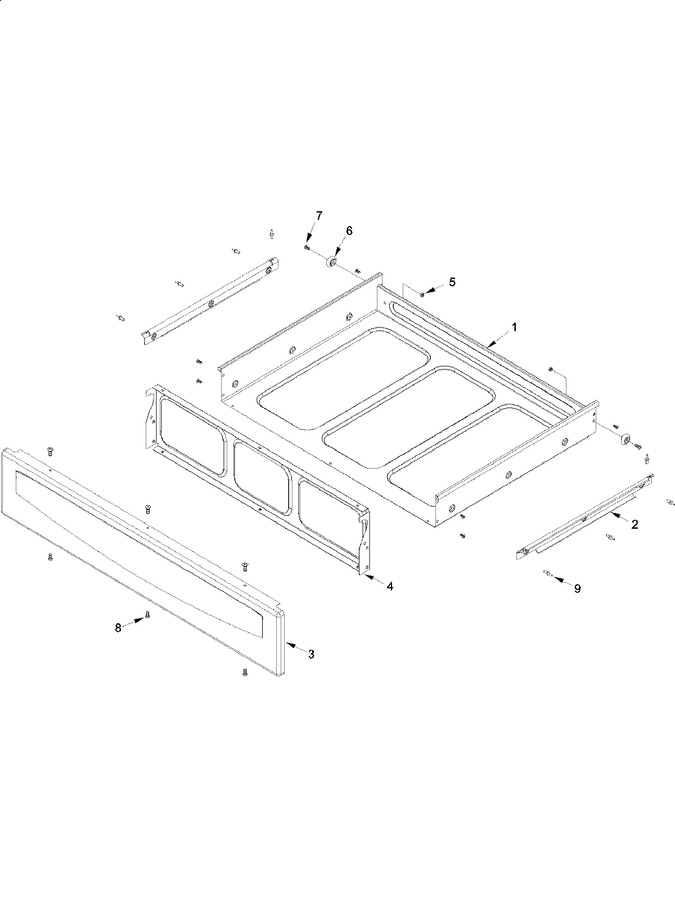

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31942902W		Wrapper, Storage Drwr-gas(wht)		Appelez-nous	-
2	31733301		Track, Storage Drawer		Appelez-nous	-
3	31937702B		Drawer Panel-gas (blk)		Appelez-nous	-
4	32074701		Liner, Drawer Panel-gas		Appelez-nous	-
5	31750130		Nut, Lock (center) No.10-32 (zn)		Appelez-nous	-
6	31733401		Roller, Drawer				$ 5.75
7	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
8	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
9	Y0097822		Rivet, Pop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
