SELECT A DIAGRAM

01 - Cabinet


02 - Cavity And Backguard


03 - Maintop And Gas Supply


04 - Oven Door And Storage Drawer

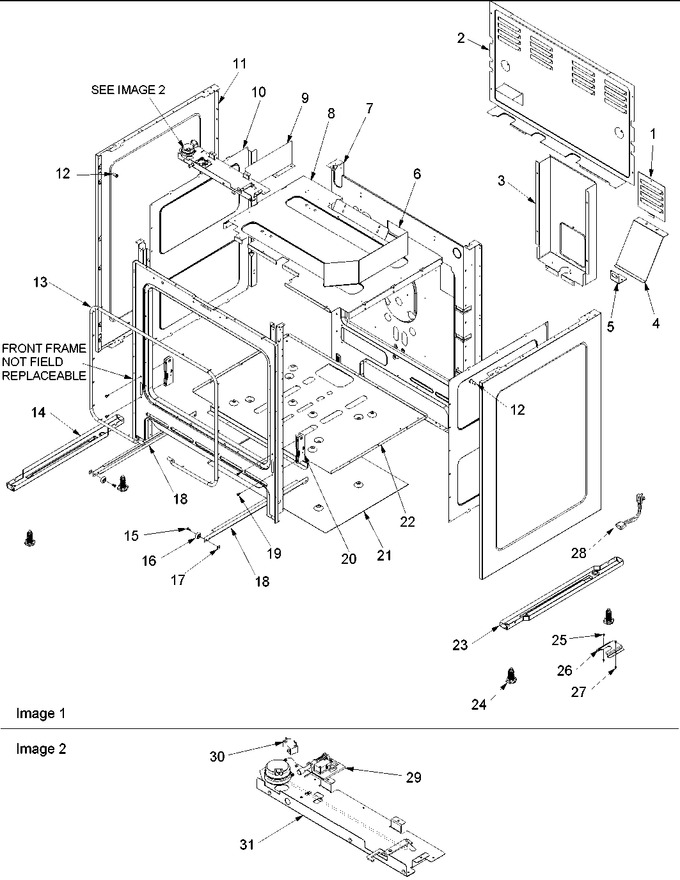

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31757201		Plate, Access		Appelez-nous	-
2	32021401		Cover, Lower Rear		Appelez-nous	-
3	31955101		Raceway, Lower Wire		Appelez-nous	-
4	32027101		Wire Shield (gas)		Appelez-nous	-
5	31956001		Bracket, Mounting-supply Cord		Appelez-nous	-
6	32006101		Shield, Side Panel-lg Burner		Appelez-nous	-
7	31936601		Retainer Insulation (rear)		Appelez-nous	-
8	31936701		Retainer Insulation (top)		Appelez-nous	-
9	32006001		Shield, Side Panel-rt		Appelez-nous	-
10	31932101		Retainer Insulation (side)		Appelez-nous	-
11	32041002B		Panel, Side (blk)		Appelez-nous	-
12	31750718		Screw, Shoulder Abno.8-18 X .550		Appelez-nous	-
13	32057601		Gasket, Oven Door		Appelez-nous	-
14	31968501		Assy, Btm Brace/level Leg-lt		Appelez-nous	-
15	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
16	31733401		Roller, Drawer				$ 5.75
17	31750130		Nut, Lock (center) No.10-32 (zn)		Appelez-nous	-
18	31733201		Track, Mounting		Appelez-nous	-
19	31750402		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
20	31946801		Receiver, Hinge		Appelez-nous	-
21	32032501		Heat Shield, Drawer		Appelez-nous	-
22	31931901		Retainer Insulation (bottom)		Appelez-nous	-
23	31968502		Assy, Btm Brace/level Leg-rt		Appelez-nous	-
24	31949001B		Leg, Plastic Leveling		Appelez-nous	-
25	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
26	31945201		Bracket, Anti Tip		Appelez-nous	-
27	Y0301555		Anchor, Plastic		Appelez-nous	-
28	Y0306654		Power Cord		Appelez-nous	-
29	32006701		Assy, Plunger Switch (class F)		Appelez-nous	-
30	32006601		Switch, Micro (class F)		Appelez-nous	-
31	31943301		Autolatch-5.1 (gas)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
