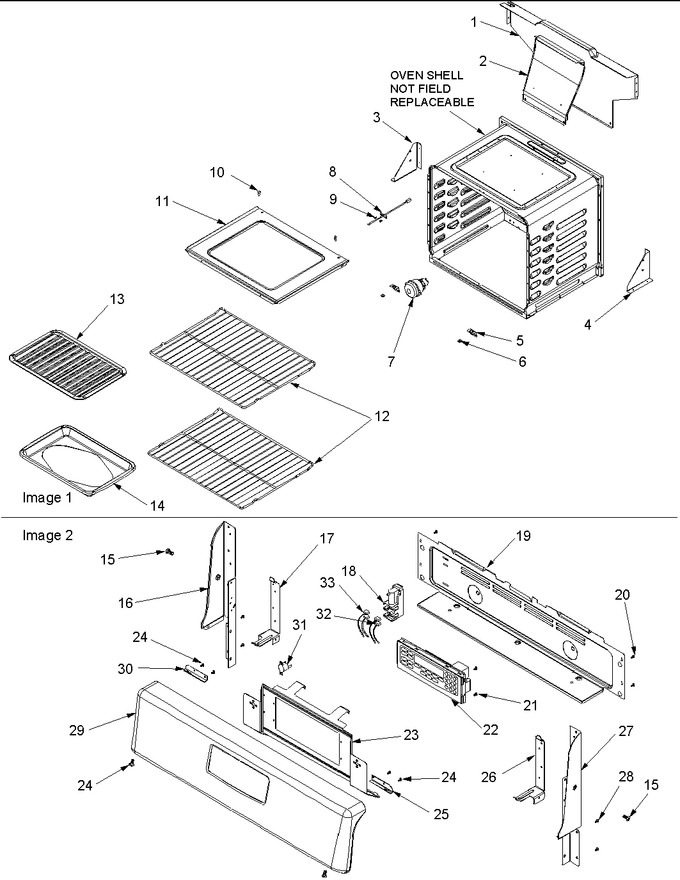

01 - Cabinet


02 - Cavity And Backguard


03 - Maintop And Gas Supply


04 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31986501B		Shield, Backguard (blk)		Appelez-nous	-
2	31941202CG		Assy, Flue (cg)		Appelez-nous	-
3	31937102		Gusset, Oven Support-lt		Appelez-nous	-
4	31937101		Gusset, Oven Support-rt		Appelez-nous	-
5	31945401		Brkt, Support-oven Btm		Appelez-nous	-
6	31750129		Nut, Speed		Appelez-nous	-
7	31823701		Oven Light Assy		Appelez-nous	-
8	31954301		Sensor, Temperture				$ 112.39
9	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
10	31750723		Screw, Oven Bottom		Appelez-nous	-
11	31940802CG		Bottom, Oven (cg)		Appelez-nous	-
12	32016001J		Rack, Oven-24.080`` X 17.750``		Appelez-nous	-
13	31959401CG		Grid, Broiler		Appelez-nous	-
14	31959301CG		Pan, Broiler		Appelez-nous	-
15	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
16	31937602B		Support, Backguard (blk) Lt		Appelez-nous	-
17	32030602		Brkt, Bkgd Pivot Mtg-lt		Appelez-nous	-
18	31962701		Spark Module				$ 139.34
19	31954401		Cover, Upper Rear		Appelez-nous	-
20	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
21	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
22	32059501B		Erc-sigma/gas(black)		Appelez-nous	-
23	31937402		Bracket,clock Mtg(sigma)		Appelez-nous	-
24	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
25	32030701		Mtg Bracket, Backguard Rt		Appelez-nous	-
26	32030601		Brkt, Bkgd Pivot Mtg-rt		Appelez-nous	-
27	31937606B		Support, Backguard (blk) Rt		Appelez-nous	-
28	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
29	31943508B		Panel, Bkgd-screened (blk)		Appelez-nous	-
29	32051201SS		Assy,bkgd Panel/ovrly(stn Stl)		Appelez-nous	-
30	32030702		Mtg Bracket, Backguard Lt		Appelez-nous	-
31	32012701		Control, Limit		Appelez-nous	-
32	32014101		Wire Harness, Ignitor-35/31``		Appelez-nous	-
33	32012001		Wire Harness, Ignition-34/28``		Appelez-nous	-
NI	32030201		Harness, Main (sigma)		Appelez-nous	-
