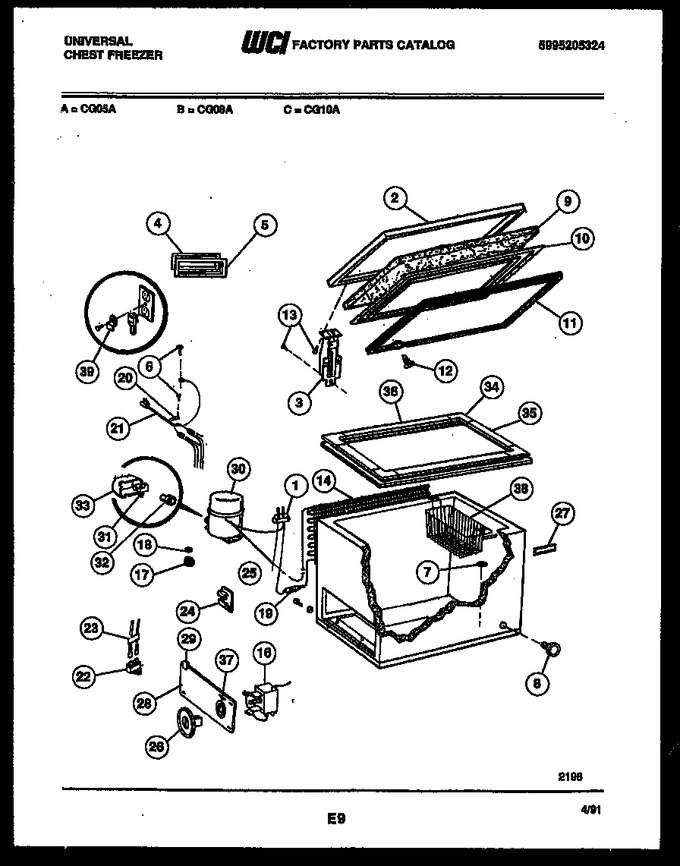

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 06599967 | Grommet |
|
- | |||||
| 2 | 5303210129 | Lid-exterior-almond |
|
- | |||||
| 3 | 5300129936 | Hinge |
|
- | |||||
| 4 | 08009392 | Gasket Handle |
|
- | |||||
| 5 | 08037982 | Handle Recessed |
|
- | |||||
| 6 | 08037851 | Screw |
|
$ 3.57 | |||||
| 7 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 8 | 5306599932 | Plug Drain Shell |
|
- | |||||
| 9 | 5303207456 | Insulation Lid |
|
- | |||||
| 10 | F114265-895 | Panel Inner Lid |
|
- | |||||
| 11 | 5300301164 | Gasket-brown |
|
- | |||||
| 12 | 5303091422 | Clip Panel |
|
- | |||||
| 13 | 5309950602 | Screw |
|
$ 5.30 | |||||
| 14 | 5300120781 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 16 | 5308013601 | Control Temp |
|
- | |||||
| 17 | 5308008778 | Grommet Compr |
|
- | |||||
| 18 | 5309950343 | Clip Compr |
|
- | |||||
| 19 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 20 | 5303017718 | Clamp |
|
- | |||||
| 21 | 3018261 | Harness |
|
- | |||||
| 22 | 3017761 | Capacitor Run |
|
- | |||||
| 23 | 5303206808 | Harness Capacitor |
|
- | |||||
| 24 | 5303208622 | Clip Grounding |
|
- | |||||
| 25 | 5305878546 | Spacer Condenser |
|
$ 7.23 | |||||
| 26 | 5303208881 | Knob Control |
|
- | |||||
| 27 | 3200515 | Nameplate |
|
- | |||||
| 28 | 5303206882 | Panel Access-almond |
|
- | |||||
| 29 | 5309950877 | Retainer Panel |
|
- | |||||
| 30 | 5300186041 | Compressor Service W/ Electricals |
|
- | |||||
| 31 | 5303017753 | Relay |
|
- | |||||
| 32 | 5303206885 | Overload |
|
$ 119.23 | |||||
| 33 | 5303206815 | Cover Terminal |
|
- | |||||
| 34 | 5303018270 | Breaker Corner-almond |
|
- | |||||
| 35 | 5303018273 | Breaker End-almond |
|
- | |||||
| 36 | 3018755 | Breaker Front & Rear-almond |
|
- | |||||
| 37 | 5303208663 | Plug-indicator |
|
- | |||||
| 38 | 5303018277 | Basket (not Original Equipment-customer Purchase Option. |
|
- | |||||
| 39 | 08016777 | Retainer-power Cord (not Original Equipment-customer Pur |
|
- | |||||
| 14A | 06599553 | Clip, Wires |
|
- |
