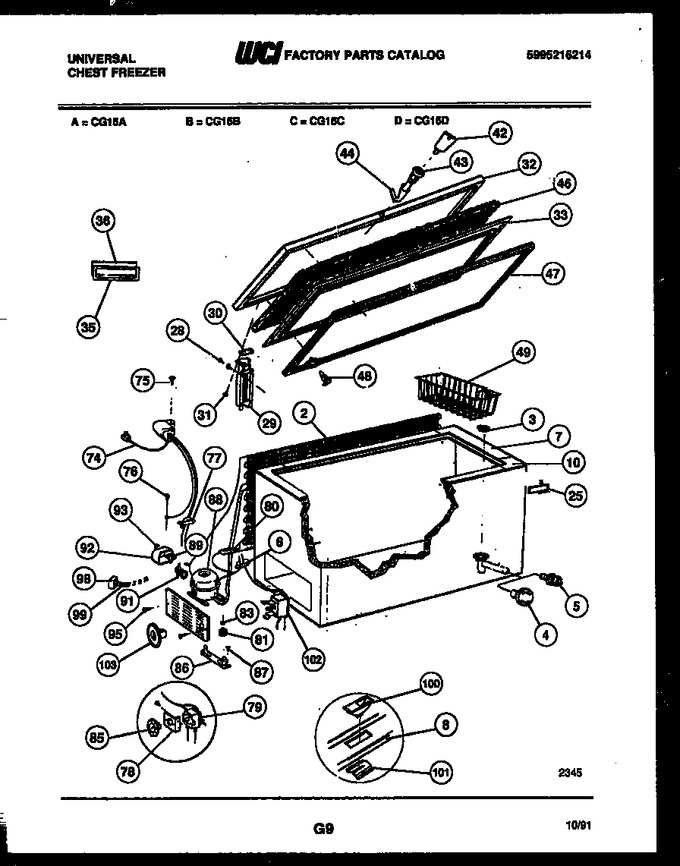

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300120781 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 08016777 | Hose Adapter (not Original Equipment-customer Purchase O |
|
- | |||||
| 6 | 06599967 | Grommet |
|
- | |||||
| 7 | 08017009 | Breaker Ends |
|
- | |||||
| 8 | 5300900261 | Breaker Front & Rear |
|
- | |||||
| 25 | 5317116101 | Bezel Nameplate |
|
- | |||||
| 28 | 5309950602 | Screw Hinge Base (8) |
|
$ 5.30 | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 30 | 08037853 | Spacer-hinge Wing (2) |
|
- | |||||
| 31 | 5303091426 | Screw-hinge Wing |
|
- | |||||
| 32 | 3018262 | Lid-panel (white) |
|
- | |||||
| 33 | 5303209029 | Panel-inner Lid (blue) |
|
- | |||||
| 35 | 08037955 | Handle Recessed |
|
- | |||||
| 36 | 08009392 | Gasket Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5300190358 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 08016778 | Insulation-lid |
|
- | |||||
| 47 | 3017645 | Gasket Lid |
|
- | |||||
| 48 | 5303091422 | Clip Panel (39) (not Original Equipment-customer Purchas |
|
- | |||||
| 49 | 5303204811 | Basket (not Original Equipment-customer Purchase Option) |
|
- | |||||
| 74 | 08017013 | Wiring Harn W/ Pwr Cord |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 78 | 5308016760 | Bracket-control |
|
- | |||||
| 79 | 5308037987 | Control Temp |
|
- | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet-compr (4) |
|
- | |||||
| 83 | 5309950343 | Clip Compr (4) |
|
- | |||||
| 84 | 5308017004 | Access Panel |
|
- | |||||
| 85 | 5303091432 | Knob Control |
|
- | |||||
| 86 | 08016764 | Support Compr (2) |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916022 | Compressor |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 3017760 | Overload |
|
- | |||||
| 91 | 3017758 | Clip-overload |
|
- | |||||
| 92 | 08016583 | Cover-terminal |
|
- | |||||
| 93 | 08016584 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 |
